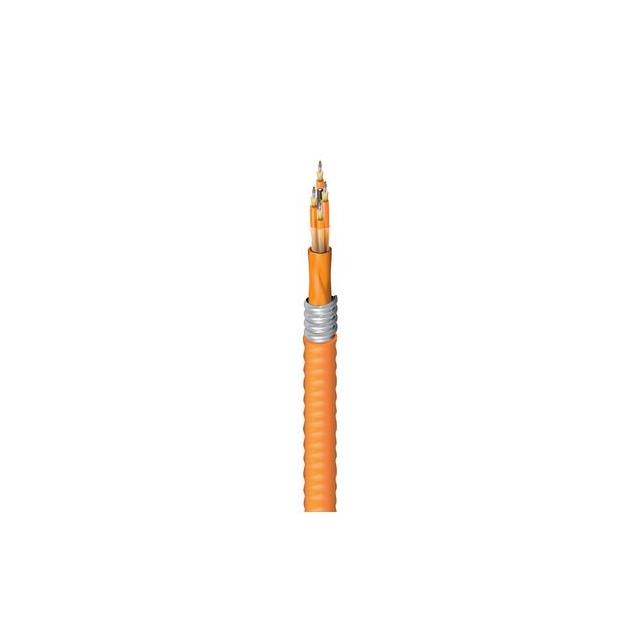

FI1D048FK

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FI1D048FK

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	62.5 µm
Features	Armored
Features	48 Fibers
Jacket (Insulation) Diameter [diameter]	26.95 mm
Jacket (Insulation) Diameter [diameter]	1.061 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Orange
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Ratings	OFCR
Style	Multiple Fibers
Tensile Strength	40.8 kg
Type	Multimode

Part	Tensile Strength	Style	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Ratings	Core Diameter [diameter]	Features	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Cladding Diameter [diameter]
Belden Inc. FI1D048FK	40.8 kg	Multiple Fibers	Poly-Vinyl Chloride (PVC)	26.95 mm	1.061 in	Orange	OFCR	62.5 µm	Armored	48 Fibers	-20 C	70 °C	Multimode	125 µm
Belden Inc. FI1D048PK	40.8 kg	Multiple Fibers	Poly-Vinyl Chloride (PVC)	14.99 mm	0.59 in	Orange	OFNP	62.5 µm	Rip Cord	48 Fibers	0 °C	70 °C	Multimode	125 µm
Belden Inc. FI1D048RK	40.8 kg	Multiple Fibers	Poly-Vinyl Chloride (PVC)	16.87 mm	0.664 in	Orange	OFNR	62.5 µm	Rip Cord	48 Fibers	-20 C	70 °C	Multimode	125 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 11.74

General part information

Fiber Optic Cable Orange Multimode 125µm
