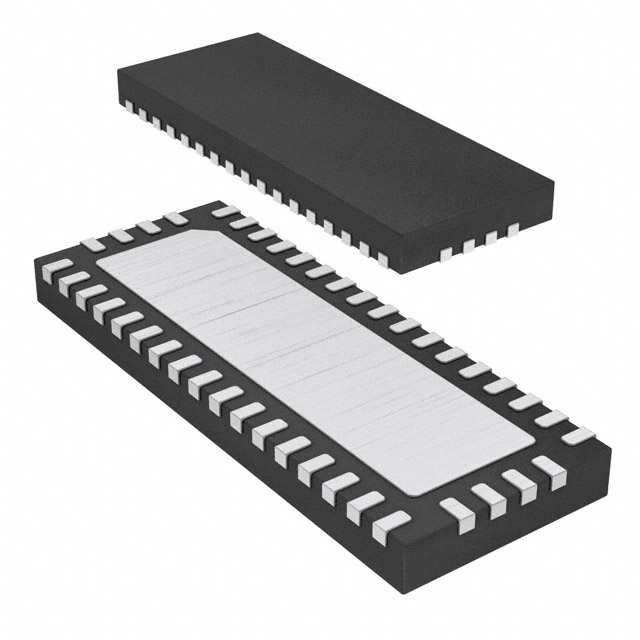

TC7PCI3412MT,LF

Unknown

Toshiba Semiconductor and Storage

IC MUX/DEMUX 2:1 DIFF PCI 42TQFN

Search across all available documentation for this part.

Unknown

Toshiba Semiconductor and Storage

IC MUX/DEMUX 2:1 DIFF PCI 42TQFN

Technical Specifications

Parameters and characteristics for this part

Specification	TC7PCI3412MT,LF

-3db Bandwidth	10 GHz
Applications	PCI Express®
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Channels	8
On-State Resistance (Max) [Max]	13.5 Ohm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Supplier Device Package	42-TQFN (9x3.5)
Switch Circuit	SPDT
Voltage - Supply, Single (V+) [Max]	3.6 V
Voltage - Supply, Single (V+) [Min]	3 V

Part	Applications	Multiplexer/Demultiplexer Circuit	Mounting Type	-3db Bandwidth	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	On-State Resistance (Max) [Max]	Number of Channels	Switch Circuit	Supplier Device Package
Toshiba Semiconductor and Storage TC7PCI3412MT,LF	PCI Express®	2:1	Surface Mount	10 GHz	85 °C	-40 °C	3.6 V	3 V	13.5 Ohm	8	SPDT	42-TQFN (9x3.5)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PCI Express® Switch IC 8 Channel 42-TQFN (9x3.5)

Technical documentation and resources
