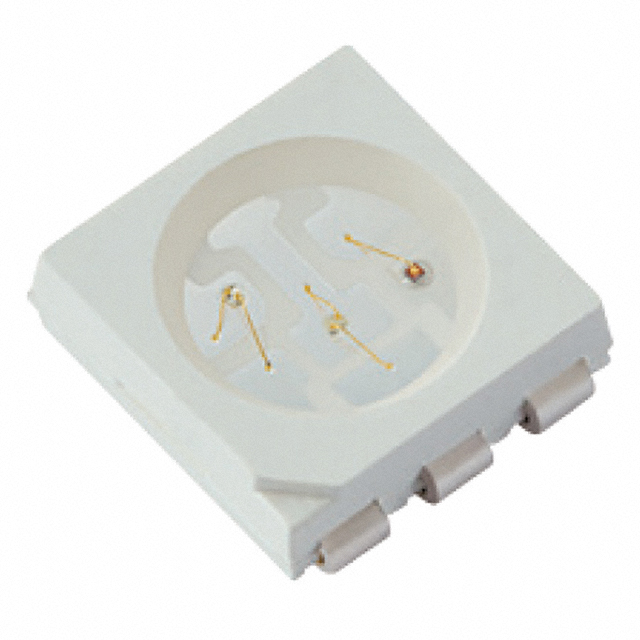

XZCBDDGKME107SC2
ActiveSunLED
LED RGB CLEAR 6SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZCBDDGKME107SC2
ActiveSunLED
LED RGB CLEAR 6SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZCBDDGKME107SC2 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Independent |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 30 mA |
| Current - Test [custom] | 30 mA |
| Height (Max) [Max] | 1.5 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 4 mm |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 198 mcd |
| Millicandela Rating [custom] | 317 mcd |
| Millicandela Rating [custom] | 695 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2020 |
| Package / Case | 5050 Metric |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Supplier Device Package | 6-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 3.5 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.5 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.05 V |
| Wavelength - Dominant | 465 nm, 624 nm, 525 nm |
| Wavelength - Peak [custom] | 515 nm |
| Wavelength - Peak [custom] | 460 nm |
| Wavelength - Peak [custom] | 632 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 0.48 | |
| 1000 | $ 0.39 | |||
| 2500 | $ 0.37 | |||
| 5000 | $ 0.36 | |||
| 12500 | $ 0.36 | |||
| 25000 | $ 0.35 | |||
Description
General part information
XZCBDDGKME107 Series
Red, Green, Blue (RGB) 624nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 2.05V Red, 3.5V Green, 3.5V Blue 2020 (5050 Metric)
