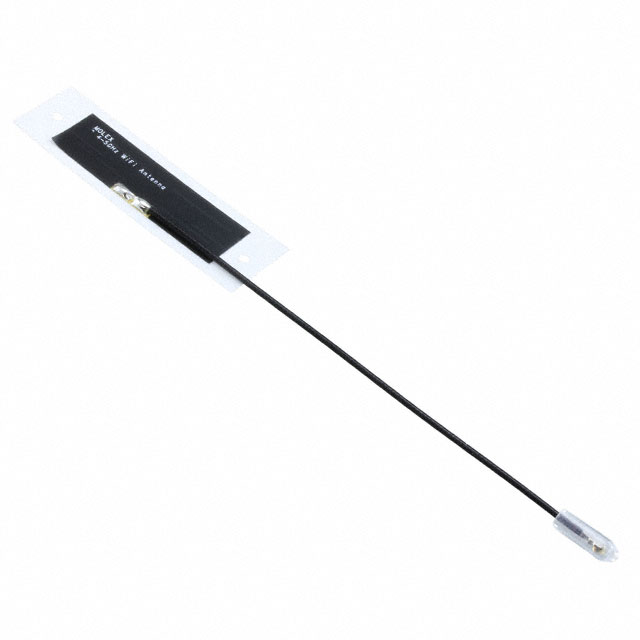

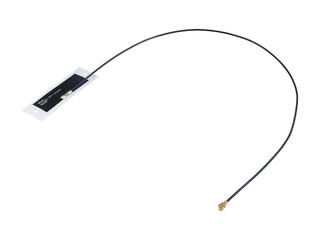

2042810300 - Wi-Fi 6E Flex Cabled Side-Fed Balanced Antenna, 300.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors

2042810300

Active
Molex

WI-FI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA, 300.00MM CABLE LENGTH, COMPATIBLE WITH U.FL / I-PEX MHF CONNECTORS

Find alt
2042810300 - Wi-Fi 6E Flex Cabled Side-Fed Balanced Antenna, 300.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors

2042810300

Active
Molex

WI-FI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA, 300.00MM CABLE LENGTH, COMPATIBLE WITH U.FL / I-PEX MHF CONNECTORS

Find alt

Description

General part information

204281 Series

WI-FI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA, 300.00MM CABLE LENGTH, COMPATIBLE WITH U.FL / I-PEX MHF CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification2042810300
Antenna TypePCB Trace
ApplicationsWi-Fi, Zigbee™
FeaturesCable, 300mm
Frequency (Band)5.5 GHz
Frequency (Center)2.442 GHz
Frequency GroupSHF, UHF
Frequency Group Maximum (UHF)3 GHz
Frequency Group Minimum (SHF)4 GHz
Frequency Group Minimum (UHF)2 GHz
Frequency Range (Band 1) Maximum2.484 GHz
Frequency Range (Band 1) Minimum2.4 GHz
Frequency Range (Band 2) Maximum5.85 GHz
Frequency Range (Band 2) Minimum5.15 GHz
Gain2.3 dBi, 1.2 dBi
Height (Max)0.004 in
Mounting TypeAdhesive
Number of Bands2
Return Loss-10 dB
RF Family/Standard802.15.4, WiFi
Termination TypeU.FL, I-PEX MHF1
