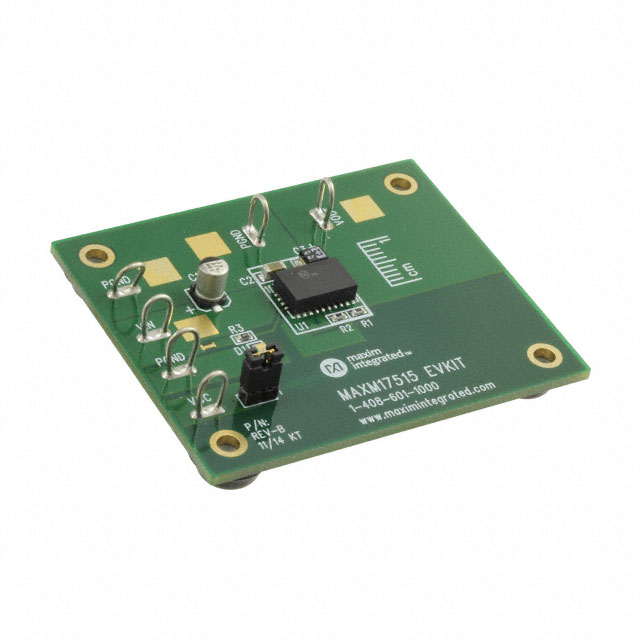

MAXM17515EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAXM17515
Deep-Dive with AI
Search across all available documentation for this part.
MAXM17515EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAXM17515
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17515EVKIT# | MAXM17515 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 5 A | 5 A |
| Current - Output (Max) | - | 5 A |
| Features | - | OTP, UVLO, OCP |
| Frequency - Switching | 1 MHz | 1 MHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 29-SMD Module, Exposed Pad |
| Regulator Topology | Buck | Buck |
| Size / Dimension | - | 15 mm |
| Size / Dimension | - | 0.11 in |
| Size / Dimension | - | 0.59 in |
| Size / Dimension | - | 9 mm |
| Size / Dimension | - | 2.8 mm |
| Size / Dimension | - | 0.35 " |
| Supplied Contents | Board(s) | Board(s) |
| Type | - | Non-Isolated PoL Module |
| Utilized IC / Part | MAXM17515 | MAXM17515 |
| Voltage - Input (Max) | - | 5.5 V |
| Voltage - Input (Min) | - | 2.4 V |
| Voltage - Input [Max] | 5.5 V | 5.5 V |
| Voltage - Input [Min] | 2.4 V | 2.4 V |
| Voltage - Output [Max] | 3.6 V | 3.6 V |
| Voltage - Output [Min] | 0.75 V | 0.75 V |
| Voltage - Output 1 | - | 0.75 V |
| Voltage - Output 1 | - | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 39.90 | |
MAXM17515 Series
EVAL KIT FOR MAXM17515
| Part | Current - Output | Board Type | Frequency - Switching | Regulator Topology | Utilized IC / Part | Supplied Contents | Main Purpose | Voltage - Output [Min] | Voltage - Output [Max] | Outputs and Type | Outputs and Type | Voltage - Input [Min] | Voltage - Input [Max] | Number of Outputs | Features | Mounting Type | Package / Case | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Min) [Min] | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Current - Output (Max) [Max] | Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17515EVKIT# | 5 A | Fully Populated | 1 MHz | Buck | MAXM17515 | Board(s) | DC/DC, Step Down | 0.75 V | 3.6 V | Non-Isolated | 1 | 2.4 V | 5.5 V | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17515ALI+T | 1 | OCP, OTP, UVLO | Surface Mount | 29-SMD Module, Exposed Pad | 15 mm | 0.11 in | 0.59 in | 9 mm | 2.8 mm | 0.35 " | 2.4 V | 0.75 V | 3.6 V | 5 A | Non-Isolated PoL Module | ITE (Commercial) | 125 °C | -40 °C | 5.5 V | |||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17515ALI+ | 1 | OCP, OTP, UVLO | Surface Mount | 29-SMD Module, Exposed Pad | 15 mm | 0.11 in | 0.59 in | 9 mm | 2.8 mm | 0.35 " | 2.4 V | 0.75 V | 3.6 V | 5 A | Non-Isolated PoL Module | ITE (Commercial) | 125 °C | -40 °C | 5.5 V |
Description
General part information
MAXM17515 Series
MAXM17515 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
