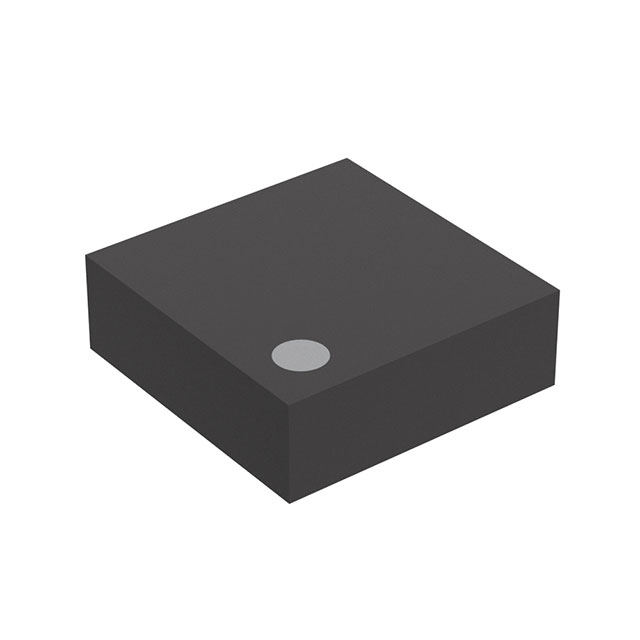

R3118K201A-TR

Active

Nisshinbo Micro Devices Inc

IC SUPERVISOR 1 CHANNEL 6DFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R3118K201A-TR

Active

Nisshinbo Micro Devices Inc

IC SUPERVISOR 1 CHANNEL 6DFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R3118K201A-TR

Mounting Type	Surface Mount
Number of Voltages Monitored	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Open Drain or Open Collector
Package / Case	6-XFDFN
Reset	Active Low
Reset Timeout	70 ms
Supplier Device Package	DFN(PL)1212-6
Type	Voltage Detector
Voltage - Threshold	2 V

R3118 Series

Part	Type	Mounting Type	Voltage - Threshold	Output	Number of Voltages Monitored	Reset	Package / Case	Supplier Device Package	Reset Timeout	Operating Temperature [Max]	Operating Temperature [Min]
Nisshinbo Micro Devices Inc R3118N201A-TR-FE	Voltage Detector	Surface Mount	2 V	Open Drain or Open Collector	1	Active Low	SC-74A SOT-753	SOT-23-5	70 ms	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3118N251A-TR-FE	Voltage Detector	Surface Mount	2.5 V	Open Drain or Open Collector	1	Active Low	SC-74A SOT-753	SOT-23-5	70 ms	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3118N061C-TR-FE	Voltage Detector	Surface Mount	0.6 V	Push-Pull Totem Pole	1	Active Low	SC-74A SOT-753	SOT-23-5	70 ms	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3118Q102A-TR-FE	Voltage Detector	Surface Mount	1 V	Open Drain or Open Collector	1	Active Low	5-TSSOP SC-70-5 SOT-353	SC-88A	70 ms	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3118K201A-TR	Voltage Detector	Surface Mount	2 V	Open Drain or Open Collector	1	Active Low	6-XFDFN	DFN(PL)1212-6	70 ms	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3118Q462A-TR-FE	Voltage Detector	Surface Mount	4.6 V	Open Drain or Open Collector	1	Active Low	5-TSSOP SC-70-5 SOT-353	SC-88A	80 µs	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3118N081A-TR-FE	Voltage Detector	Surface Mount	800 mV	Open Drain or Open Collector	1	Active Low	SC-74A SOT-753	SOT-23-5	70 ms	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3118Q502C-TR-FE	Voltage Detector	Surface Mount	5 V	Push-Pull Totem Pole	1	Active Low	5-TSSOP SC-70-5 SOT-353	SC-88A	70 ms	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3118N161A-TR-FE	Voltage Detector	Surface Mount	1.6 V	Open Drain or Open Collector	1	Active Low	SC-74A SOT-753	SOT-23-5	70 ms	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3118N451A-TR-FE	Voltage Detector	Surface Mount	4.5 V	Open Drain or Open Collector	1	Active Low	SC-74A SOT-753	SOT-23-5	70 ms	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.33
		10000	$ 0.32
		25000	$ 0.30

Description

General part information

R3118 Series

Supervisor Open Drain or Open Collector 1 Channel DFN(PL)1212-6

Documents

Technical documentation and resources
