Technical Specifications
Parameters and characteristics for this part
| Specification | M95P08-IXCST/EF |
|---|---|
| Access Time | 10 ns |
| Clock Frequency | 80 MHz |
| Memory Format | EEPROM |
| Memory Interface | SPI - Quad I/O |
| Memory Organization [custom] | 1 M |
| Memory Organization [custom] | 8 bits |
| Memory Size | 1024 KB |
| Memory Type | Non-Volatile |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

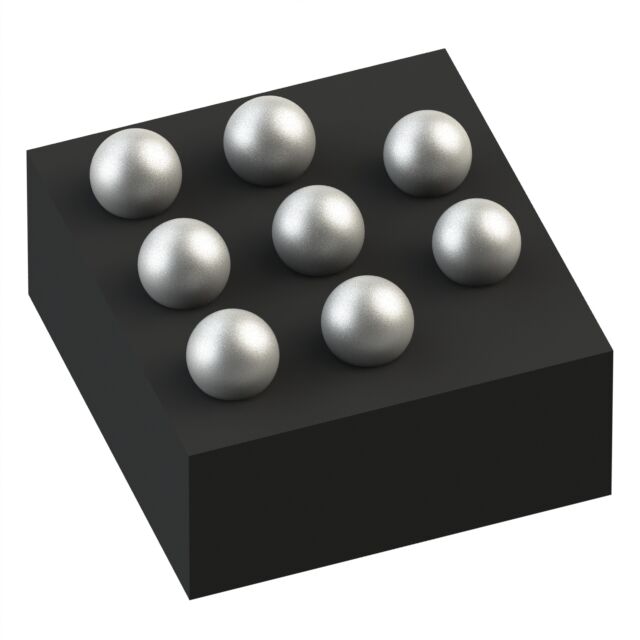

| Package / Case | WLCSP, 8-UFBGA |
| Supplier Device Package | 8-WLCSP (1.26x1.36) |
| Supplier Device Package [x] | 1.26 |
| Supplier Device Package [y] | 1.36 |
| Technology | EEPROM |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.6 V |
| Write Cycle Time - Word, Page [custom] | 1.5 ms |
| Write Cycle Time - Word, Page [custom] | 1.5 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.23 | |
| 10 | $ 0.90 | |||
| 25 | $ 0.81 | |||
| 100 | $ 0.72 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.62 | |||
| 2500 | $ 0.60 | |||
| Digi-Reel® | 1 | $ 1.23 | ||
| 10 | $ 0.90 | |||
| 25 | $ 0.81 | |||
| 100 | $ 0.72 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.62 | |||
| 2500 | $ 0.60 | |||
| Tape & Reel (TR) | 5000 | $ 0.53 | ||
Description
General part information
M95P08-I Series
The M95P08-I and M95P08-E are manufactured with ST's advanced proprietary NVM technology. They offer byte flexibility, page alterability, high page cycling performance, and ultra‑low power consumption, equivalent to that of EEPROM technology.
The M95P08-I and M95P08-E are an 8-Mbit SPI page EEPROM device organized as 2048 programmable pages of 512 bytes each, accessed through an SPI bus with high-performance dual- and quad SPI outputs.
The devices offer two additional (identification) 512-byte pages:
