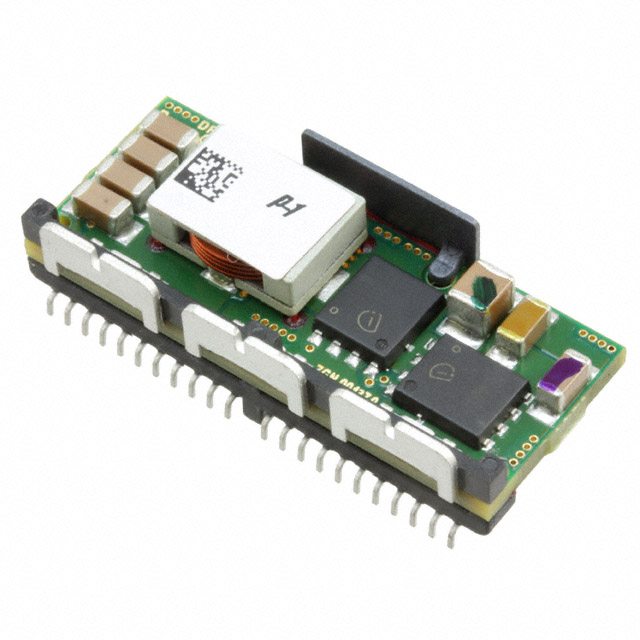

DP7120G-R100

Active

Bel Power Solutions

DC DC CONVERTER 0.7-5.5V

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 0.7-5.5V

Technical Specifications

Parameters and characteristics for this part

Specification	DP7120G-R100

Applications	ITE (Commercial)
Current - Output (Max) [Max]	20 A
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	14 mm
Size / Dimension [y]	0.55 in
Size / Dimension [z]	8 mm
Size / Dimension [z]	0.31 in
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	8 V
Voltage - Output 1 [Max]	5.5 V
Voltage - Output 1 [Min]	0.7 V

DC DC CONVERTER 0.7-5.5V

Part	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Mounting Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Current - Output (Max) [Max]
Bel Power Solutions DP7120G-R100	5.5 V	0.7 V	Surface Mount	1	14 mm	8 mm	32 mm	0.55 in	1.26 in	0.31 in	Module	8 V	14 V	Non-Isolated PoL Module, Digital	85 °C	-40 °C	ITE (Commercial)	20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.7 ~ 5.5V 20A 8V - 14V Input

Technical documentation and resources

No documents available
