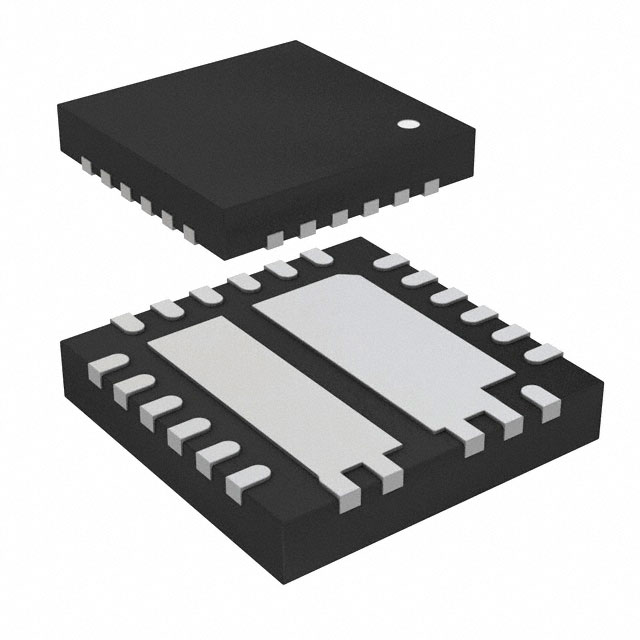

AOZ2260AQI-18

Active

Alpha & Omega Semiconductor Inc.

IC REG BUCK ADJ 6A 23QFNA

Search across all available documentation for this part.

Active

Alpha & Omega Semiconductor Inc.

IC REG BUCK ADJ 6A 23QFNA

Technical Specifications

Parameters and characteristics for this part

Part	Function	Voltage - Output (Min/Fixed)	Number of Outputs	Package / Case	Topology	Voltage - Input (Min) [Min]	Output Configuration	Voltage - Output (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Output Type	Mounting Type	Current - Output	Voltage - Input (Max) [Max]	Frequency - Switching	Voltage - Output (Max) [Max]
Alpha & Omega Semiconductor Inc. AOZ2260BQI-20	Step-Down	0.8 V	1	22-PowerVFQFN	Buck	10 VDC	Positive	5 V	85 °C	-40 °C	22-QFN (4x4)	Adjustable	Surface Mount	6 A	28 V
Alpha & Omega Semiconductor Inc. AOZ2260AQI-18	Step-Down	0.8 V	1	23-PowerTFQFN	Buck	4 V	Positive	24 V	85 °C	-40 °C	23-QFNA (4x4)	Adjustable	Surface Mount	6 A	28 V	1 MHz
Alpha & Omega Semiconductor Inc. AOZ2260BQI-28	Step-Down	0.8 V	1	23-PowerTFQFN	Buck	10 VDC	Positive	5 V	85 °C	-40 °C	23-QFNB (4x4)	Adjustable	Surface Mount	6 A	28 V
Alpha & Omega Semiconductor Inc. AOZ2260QI-11	Step-Down	0.8 V	1	22-PowerVFQFN	Buck	2.7 V	Positive		85 °C	-40 °C	22-QFN (4x4)	Adjustable	Surface Mount	6 A	28 V	1 MHz	23.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 6A 23-PowerTFQFN
