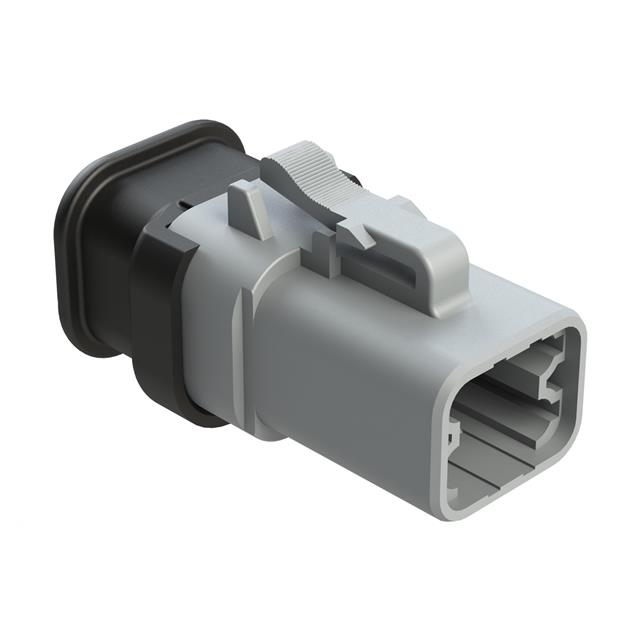

ATP06-4S-SR01

Active

Amphenol Sine Systems Corp

4 POSITION PLUG, SOCKET, STRAIN

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

4 POSITION PLUG, SOCKET, STRAIN

Technical Specifications

Parameters and characteristics for this part

Specification	ATP06-4S-SR01

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Cap (Cover), IP69K, Strain Relief, IP68, Sealed
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Number of Positions	Note	Contact Type	Features	Connector Type	Fastening Type	Contact Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Color	Number of Rows
Amphenol Sine Systems Corp ATP06-4S-RD01	4	Contacts Not Included	Female Socket	Sealed	Plug	Latch Lock	Crimp	Free Hanging (In-Line)	-55 °C	125 °C	Thermoplastic	Gray	2
Amphenol Sine Systems Corp ATP06-4S-MM01BLK	4		Female Socket	Cap (Cover) IP68 IP69K Reduced Wire Seals	Plug	Latch Lock	Crimp	Free Hanging (In-Line)	-55 °C	125 °C	Thermoplastic	Black	2
Amphenol Sine Systems Corp ATP06-4S-RD01BK	4	Contacts Not Included	Female Socket	Sealed	Plug	Latch Lock	Crimp	Free Hanging (In-Line)	-55 °C	125 °C	Thermoplastic	Black	2
Amphenol Sine Systems Corp ATP06-4S-MM01	4		Female Socket	Cap (Cover) IP68 IP69K Reduced Wire Seals	Plug	Latch Lock	Crimp	Free Hanging (In-Line)	-55 °C	125 °C	Thermoplastic	Gray	2
Amphenol Sine Systems Corp ATP06-4S-SR01	4		Female Socket	Cap (Cover) IP68 IP69K Sealed Strain Relief	Plug	Latch Lock	Crimp	Free Hanging (In-Line)	-55 °C	125 °C	Thermoplastic	Gray	2
Amphenol Sine Systems Corp ATP06-4S-SR01BK	4		Female Socket	Cap (Cover) IP68 IP69K Sealed Strain Relief	Plug	Latch Lock	Crimp	Free Hanging (In-Line)	-55 °C	125 °C	Thermoplastic	Black	2
Amphenol Sine Systems Corp ATP06-4S-SR02BK	4		Female Socket	Cap (Cover) IP68 IP69K Sealed Strain Relief	Plug	Latch Lock	Crimp	Free Hanging (In-Line)	-55 °C	125 °C	Thermoplastic	Black	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Plug Gray
