K21ME7-P04LJG0-527S
ActiveODU

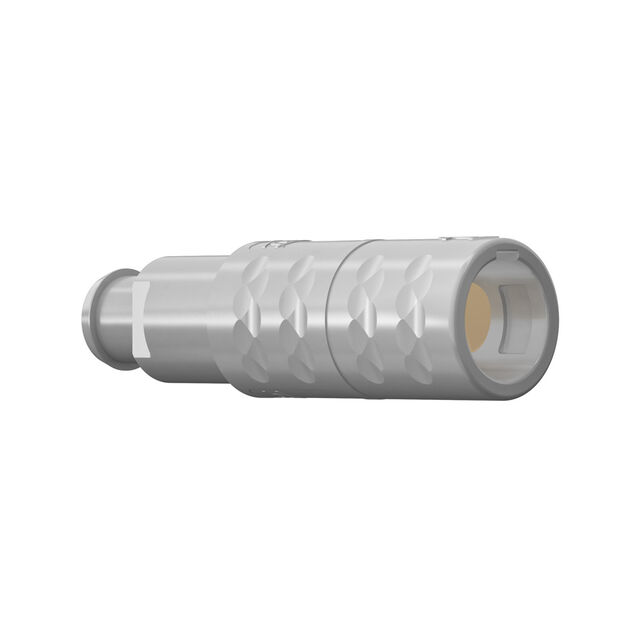

ODU MEDI-SNAP RECEPT, INLINE, ST
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | K21ME7-P04LJG0-527S |
|---|---|
| Applications | Testing Equipment, Medical, Industrial, Measurement |
| Backshell Material, Plating | Polysulfone (PSU) |
| Cable Opening [Max] [custom] | 0.205 in |
| Cable Opening [Max] [custom] | 5.2 mm |
| Cable Opening [Min] [custom] | 0.157 in |
| Cable Opening [Min] [custom] | 4 mm |
| Color | Gray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Detent Lock, Push-Pull |
| Features | Strain Relief, Backshell |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -50 °C |
| Orientation | E |
| Primary Material | Plastic |
| Shell Material | Polysulfone (PSU) |
| Shell Size - Insert | 1 |
| Shielding | Unshielded |
| Voltage Rating | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.48 | |
Description
General part information
K21ME7-P Series
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
