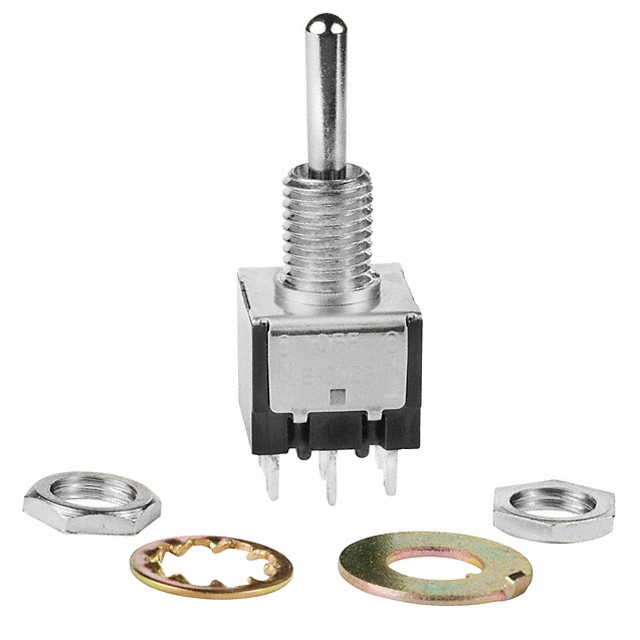

E2023P-BB

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 3A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 3A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	E2023P-BB

Actuator Length [x]	12 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round with Cap
Bushing Thread	M6 x 0.75
Circuit	DPDT
Current Rating (Amps)	3 A
Electrical Life	20000 Steps
Features	White Cap
Illumination	Non-Illuminated
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Panel Cutout Dimensions [diameter]	Bushing Thread	Actuator Length [x]	Termination Style	Features	Actuator Type	Switch Function	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage Rating - AC	Actuator Material	Electrical Life	Current Rating (Amps)	Circuit	Illumination
NKK Switches E2023P-BB	6.5 mm	M6 x 0.75	12 mm	PC Pin	White Cap	Standard Round with Cap	On-Off-On	-10 °C	158 °F	125 V	Brass Chrome Plated	20000 Steps	3 A	DPDT	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch DPDT Panel Mount
