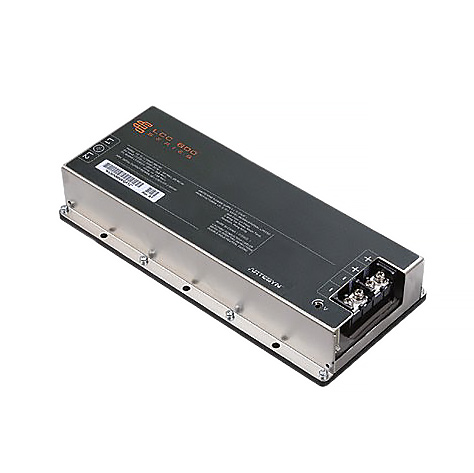

LCC600-12U-9P
ActiveARTESYN / Advanced Energy
AC/DC CONVERTER 12V 600W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCC600-12U-9P
ActiveARTESYN / Advanced Energy
AC/DC CONVERTER 12V 600W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCC600-12U-9P |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, CB |
| Current - Output 1 | 50 A |
| Efficiency | 93 % |
| Features | I2C Interface, Standby Output, Load Sharing, Adjustable Output, Remote On/Off, Remote Sense, PMBus™, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 600 W |
| Size / Dimension [x] | 228 mm |
| Size / Dimension [x] | 8.98 " |
| Size / Dimension [y] | 3.98 in |
| Size / Dimension [y] | 101 mm |
| Size / Dimension [z] | 1.57 " |
| Size / Dimension [z] | 39.8 mm |
| Standard Number | 60950-1, 60601-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
LCC600 Series
| Part | Current - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Minimum Load Required | Power (Watts) | Type | Applications | Voltage - Isolation | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Efficiency | Voltage - Output 1 | Mounting Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Standard Number | Number of Outputs | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ARTESYN / Advanced Energy | 16.7 A | 85 °C | -40 °C | 600 W | Enclosed | ITE (Commercial) | 3000 V | 305 VAC | 180 VAC | CB CE | 93 % | 36 V | Chassis Mount | 228 mm | 1.57 " | 3.98 in | 8.98 " | 39.8 mm | 101 mm | 60601-1 60950-1 62368-1 | 1 | Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output | |
ARTESYN / Advanced Energy | 16.7 A | 85 °C | -40 °C | 600 W | Enclosed | ITE (Commercial) Medical | 4000 V | 264 VAC | 90 VAC | 92 % | 36 V | Chassis Mount | 228 mm | 1.57 " | 3.98 in | 8.98 " | 39.8 mm | 101 mm | 60601-1 60950-1 62368-1 | 1 | |||
ARTESYN / Advanced Energy | 16.7 A | 85 °C | -40 °C | 600 W | Enclosed | ITE (Commercial) Medical | 4000 V | 264 VAC | 90 VAC | 92 % | 36 V | Chassis Mount | 228 mm | 1.57 " | 3.98 in | 8.98 " | 39.8 mm | 101 mm | 60601-1 60950-1 62368-1 | 1 | |||
ARTESYN / Advanced Energy | 25 A | 85 °C | -40 °C | 600 W | Enclosed | ITE (Commercial) Medical | 4000 V | 264 VAC | 90 VAC | 93 % | 24 V | Chassis Mount | 228 mm | 1.57 " | 3.98 in | 8.98 " | 39.8 mm | 101 mm | 60601-1 60950-1 62368-1 | 1 | |||
ARTESYN / Advanced Energy | 12.5 A | 85 °C | -40 °C | 600 W | Enclosed | ITE (Commercial) Medical | 4000 V | 264 VAC | 90 VAC | CB CE | 93 % | 48 V | Chassis Mount | 228 mm | 1.57 " | 3.98 in | 8.98 " | 39.8 mm | 101 mm | 60601-1 60950-1 62368-1 | 1 | Adjustable Output I2C Interface IP64 Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | |
ARTESYN / Advanced Energy | 12.5 A | 85 °C | -40 °C | 600 W | Enclosed | ITE (Commercial) | 3000 V | 305 VAC | 180 VAC | CB CE | 93 % | 48 V | Chassis Mount | 228 mm | 1.57 " | 3.98 in | 8.98 " | 39.8 mm | 101 mm | 60601-1 60950-1 62368-1 | 1 | Adjustable Output I2C Interface IP65 Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output | |
ARTESYN / Advanced Energy | 16.7 A | 85 °C | -40 °C | 600 W | Enclosed | ITE (Commercial) Medical | 4000 V | 264 VAC | 90 VAC | CB CE | 93 % | 36 V | Chassis Mount | 228 mm | 1.57 " | 3.98 in | 8.98 " | 39.8 mm | 101 mm | 60601-1 60950-1 62368-1 | 1 | Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | |
ARTESYN / Advanced Energy | 50 A | 85 °C | -40 °C | 600 W | Enclosed | ITE (Commercial) Medical | 4000 V | 264 VAC | 90 VAC | CB CE | 93 % | 12 V | Chassis Mount | 228 mm | 1.57 " | 3.98 in | 8.98 " | 39.8 mm | 101 mm | 60601-1 60950-1 62368-1 | 1 | Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | |
ARTESYN / Advanced Energy | 50 A | 85 °C | -40 °C | 600 W | Enclosed | ITE (Commercial) | 3000 V | 305 VAC | 180 VAC | CB CE | 93 % | 12 V | Chassis Mount | 228 mm | 1.57 " | 3.98 in | 8.98 " | 39.8 mm | 101 mm | 60601-1 60950-1 62368-1 | 1 | Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output | |
ARTESYN / Advanced Energy | 50 A | 85 °C | -40 °C | 600 W | Enclosed | ITE (Commercial) | 3000 V | 305 VAC | 180 VAC | CB CE | 93 % | 12 V | Chassis Mount | 228 mm | 1.57 " | 3.98 in | 8.98 " | 39.8 mm | 101 mm | 60601-1 60950-1 62368-1 | 1 | Adjustable Output I2C Interface IP64 Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 323.88 | |
| 5 | $ 313.76 | |||
| 24 | $ 303.64 | |||
Description
General part information
LCC600 Series
Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
