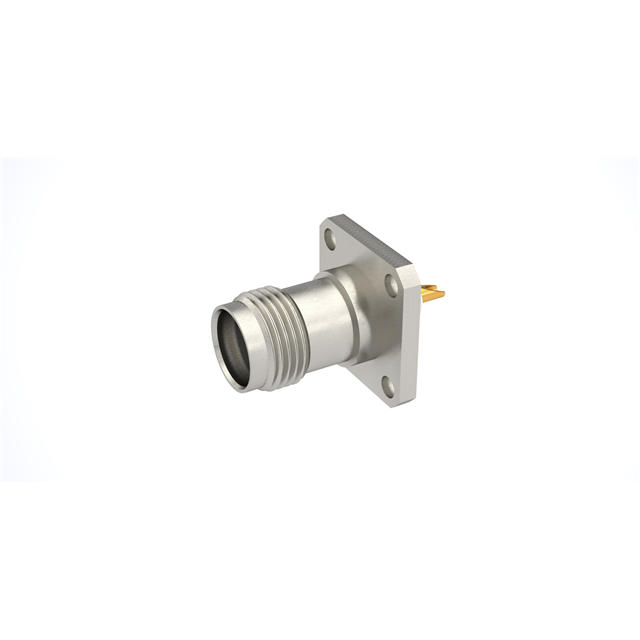

R143405000
ActiveRadiall USA, Inc.
TNC / SQUARE FLANGE JACK RECEPTA
Deep-Dive with AI
Search across all available documentation for this part.
R143405000
ActiveRadiall USA, Inc.
TNC / SQUARE FLANGE JACK RECEPTA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R143405000 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Features | Extended Insulation |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.35 | |
| 10 | $ 14.50 | |||
| 25 | $ 13.94 | |||
| 50 | $ 13.38 | |||
| 100 | $ 12.64 | |||
| 300 | $ 11.52 | |||
| 500 | $ 10.78 | |||
| 1000 | $ 9.89 | |||
Description
General part information
R14340 Series
TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
