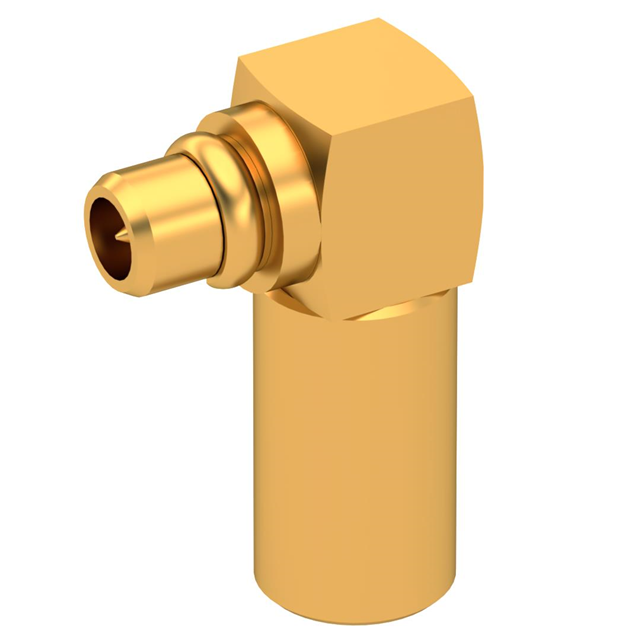

R110172100

Active

Radiall USA, Inc.

MMCX M RA CR 2.6/50S C100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MMCX M RA CR 2.6/50S C100

Technical Specifications

Parameters and characteristics for this part

Specification	R110172100

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 End Cap, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	335 V

Part	Voltage Rating	Number of Ports	Frequency - Max [Max]	Housing Color	Fastening Type	Shield Termination	Mating Cycles	Includes	Center Contact Plating	Connector Style	Connector Type	Dielectric Material	Cable Group	Center Contact Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Body Finish	Body Material	Contact Termination	Cable Group
Radiall USA, Inc. R110172100	335 V	1	6000 MHz	Gold	Snap-On	Solder	500	1 Connector 1 End Cap	Gold	MMCX	Male Pin Plug	Polytetrafluoroethylene (PTFE)	316 RG-174	Brass	Free Hanging (In-Line) Right Angle	155 °C	-55 °C	50 Ohms	Gold	Brass	Solder
Radiall USA, Inc. R110172100W	335 V	1	6000 MHz	Gold	Snap-On	Crimp	500		Gold	MMCX	Male Pin Plug	Polytetrafluoroethylene (PTFE)	316 RG-188	Brass	Free Hanging (In-Line) Right Angle	155 °C	-55 °C	50 Ohms	Gold	Brass	Crimp
Radiall USA, Inc. R110170100W	250 VDC	1	6000 MHz	Gold	Snap-On	Crimp	500		Gold	MMCX	Male Pin Plug	Polytetrafluoroethylene (PTFE)	RG-178	Brass	Free Hanging (In-Line) Right Angle	155 °C	-55 °C	50 Ohms	Gold	Brass	Crimp	196

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
