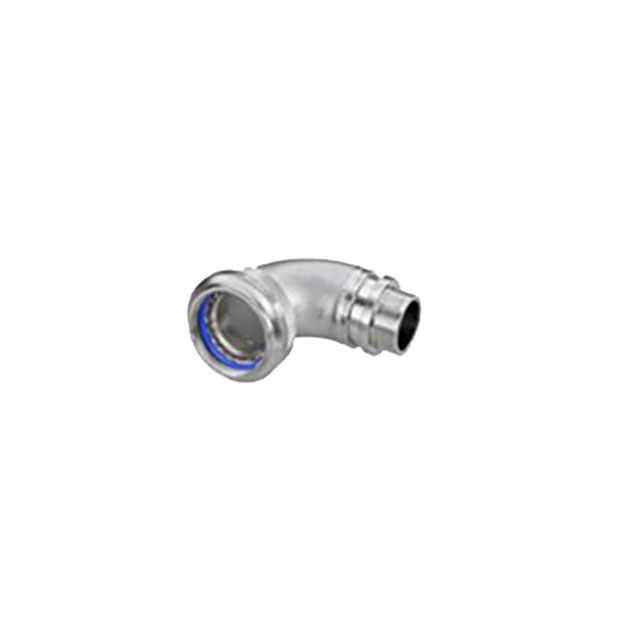

TXR40AB9W-1207AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHLL ADPT SZ13 OLIV M18

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHLL ADPT SZ13 OLIV M18

Technical Specifications

Parameters and characteristics for this part

Specification	TXR40AB9W-1207AI

Cable Exit	90 °
Cable Opening [diameter]	11.1 mm
Cable Opening [diameter]	0.437 in
Color	Olive Drab
Diameter - Outside [diameter]	0.965 in
Diameter - Outside [diameter]	24.5 mm
Features	Tinel Lock
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Includes	1 Braid, 1 Tinel Ring, 1 Backshell
Ingress Protection	Environment Resistant
Material	Aluminum
Plating	Cadmium
Shell Size - Insert	13
Shielding	Shielded
Thread Size	M18x1
Type	Backshell, Heat Shrink Adapter

CONN BACKSHLL ADPT SZ13 OLIV M18

Part	Color	Plating	Features	Includes	Cable Exit	Cable Opening [diameter]	Cable Opening [diameter]	Shielding	Material	Shell Size - Insert	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Ingress Protection	Type	For Use With/Related Products	Thread Size
TE Connectivity Aerospace, Defense and Marine TXR40AB9W-1207AI	Olive Drab	Cadmium	Tinel Lock	1 Backshell, 1 Braid, 1 Tinel Ring	90 °	11.1 mm	0.437 in	Shielded	Aluminum	13	0.965 in	24.5 mm	Environment Resistant	Backshell, Heat Shrink Adapter	MIL-DTL-38999 Series III, IV	M18x1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 176.34

General part information

Olive Drab Connector Backshell, Heat Shrink Adapter M18x1 13
