6600-63-05

Active

ELECTROSWITCH

SWITCH ACCESSORIES / CAPS ROHS

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ACCESSORIES / CAPS ROHS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6600-63-05	6600-63 Series

Actuator Diameter [diameter]	0.209 "	0.1 - 0.209 "
Actuator Diameter [diameter]	5.31 mm	2.54 - 5.31 mm
Color	Black	Black, Gray
For Use With/Related Products	6600 Series	6600 Series
Ingress Protection	Environment Sealed	Environment Sealed
Material	Silicone Rubber	Silicone Rubber
Mounting Feature	Front of Panel	Front of Panel
Operating Temperature [Max]	204 °C	204 °C
Operating Temperature [Min]	-70 °C	-70 °C
Size / Dimension [z]	0.945 "	0.412 - 0.945 in
Size / Dimension [z]	24 mm	10.46 - 24 mm
Thread Size	15/32-32 NS-2B	15/32-32 NS-2B
Type	Full Boot, Toggle	Full Boot, Toggle, Half Boot

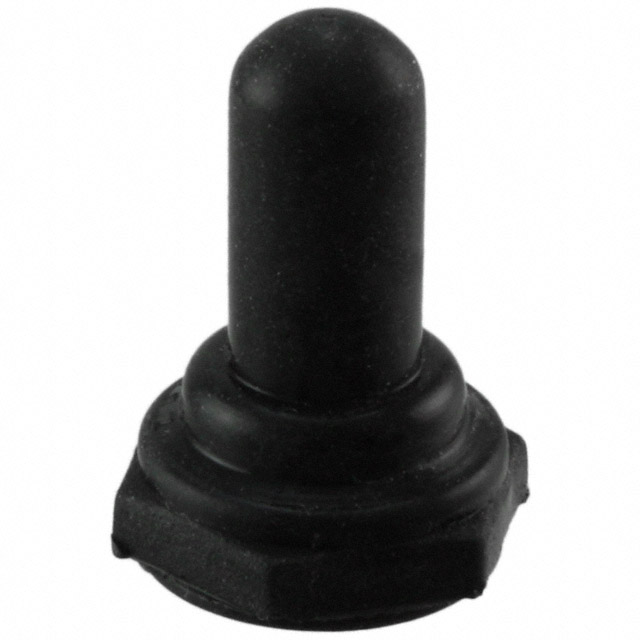

TOGGLE FULL BOOT BLACK

Part	Mounting Feature	Type	Material	Size / Dimension [z]	Size / Dimension [z]	Thread Size	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Color	Ingress Protection	For Use With/Related Products	Operating Temperature [Max]	Operating Temperature [Min]
ELECTROSWITCH 6600-63-03	Front of Panel	Full Boot, Toggle	Silicone Rubber	0.885 in	22.48 mm	15/32-32 NS-2B	0.209 "	5.31 mm	Black	Environment Sealed	6600 Series	204 °C	-70 °C
ELECTROSWITCH 6600-63-04	Front of Panel	Full Boot, Toggle	Silicone Rubber	0.885 in	22.48 mm	15/32-32 NS-2B	0.209 "	5.31 mm	Gray	Environment Sealed	6600 Series	204 °C	-70 °C
ELECTROSWITCH 6600-63-01	Front of Panel	Half Boot, Toggle	Silicone Rubber	0.412 in	10.46 mm	15/32-32 NS-2B	0.1 in	2.54 mm	Black	Environment Sealed	6600 Series	204 °C	-70 °C
ELECTROSWITCH 6600-63-05	Front of Panel	Full Boot, Toggle	Silicone Rubber	0.945 "	24 mm	15/32-32 NS-2B	0.209 "	5.31 mm	Black	Environment Sealed	6600 Series	204 °C	-70 °C
ELECTROSWITCH 6600-63-06	Front of Panel	Full Boot, Toggle	Silicone Rubber	0.945 "	24 mm	15/32-32 NS-2B	0.209 "	5.31 mm	Gray	Environment Sealed	6600 Series	204 °C	-70 °C
ELECTROSWITCH 6600-63-02	Front of Panel	Half Boot, Toggle	Silicone Rubber	0.412 in	10.46 mm	15/32-32 NS-2B	0.1 in	2.54 mm	Gray	Environment Sealed	6600 Series	204 °C	-70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SWITCH ACCESSORIES / CAPS ROHS
