337-036-559-858

Active

EDAC Inc.

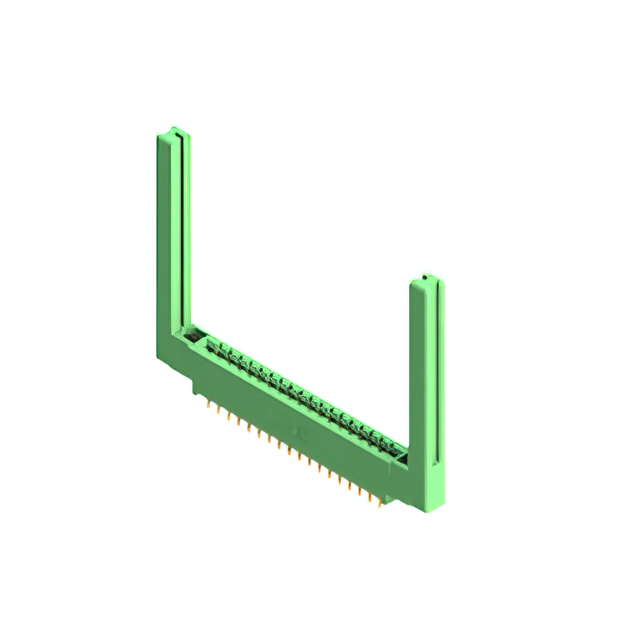

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 36 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

337-036-559-858

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 36 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	337-036-559-858

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	36
Number of Positions/Bay/Row [custom]	18
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

337-036 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination Rows	Number of Rows	Gender	Contact Type	Mounting Type	Number of Positions/Bay/Row [custom]	Number of Positions	Card Type	Read Out	Pitch [x]	Pitch [x]	Contact Finish	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Flange Feature	Material - Insulation	Features	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 337-036-523-107	-40 °C	105 ░C	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Female	Cantilever	Through Hole	36	36	Non Specified - Single Edge	Single	0.156 in	3.96 mm	Gold	Solder	10 Áin	0.25 Ám	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Polyester Thermoplastic
EDAC Inc. 337-036-500-678	-40 °C	105 ░C	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Female	Cantilever	Through Hole	36	36	Non Specified - Single Edge	Single	0.156 in	3.96 mm	Gold	Solder Eyelet(s)	10 Áin	0.25 Ám	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Polyester Thermoplastic	Card Guides
EDAC Inc. 337-036-559-858	-40 °C	105 ░C	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	2	2	Female	Cantilever	Through Hole Right Angle	18	36	Non Specified - Dual Edge	Dual	0.156 in	3.96 mm	Gold	Wire Wrap	10 Áin	0.25 Ám	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Polyester Thermoplastic	Card Guides
EDAC Inc. 337-036-541-858	-40 °C	105 ░C	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	2	2	Female	Cantilever	Through Hole	18	36	Non Specified - Dual Edge	Dual	0.156 in	3.96 mm	Gold	Wire Wrap	10 Áin	0.25 Ám	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Polyester Thermoplastic
EDAC Inc. 337-036-559-804	-40 °C	105 ░C	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	2	2	Female	Cantilever	Through Hole Right Angle	18	36	Non Specified - Dual Edge	Dual	0.156 in	3.96 mm	Gold	Wire Wrap	10 Áin	0.25 Ám	Copper Alloy	Top Mount Opening Unthreaded	Polyester Thermoplastic		0.156 in	3.96 mm
EDAC Inc. 337-036-542-858	-40 °C	105 ░C	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	2	2	Female	Cantilever	Through Hole	18	36	Non Specified - Dual Edge	Dual	0.156 in	3.96 mm	Gold	Wire Wrap	10 Áin	0.25 Ám	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Polyester Thermoplastic
EDAC Inc. 337-036-540-603	-40 °C	105 ░C	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Female	Cantilever	Through Hole	36	36	Non Specified - Single Edge	Single	0.156 in	3.96 mm	Gold	Wire Wrap	10 Áin	0.25 Ám	Copper Alloy	Floating Bobbin Top Mount Opening	Polyester Thermoplastic		0.116 in	2.95 mm
EDAC Inc. 337-036-542-668	-40 °C	105 ░C	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Female	Cantilever	Through Hole	36	36	Non Specified - Single Edge	Single	0.156 in	3.96 mm	Gold	Wire Wrap	10 Áin	0.25 Ám	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Polyester Thermoplastic	Card Guides
EDAC Inc. 337-036-542-812	-40 °C	105 ░C	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	2	2	Female	Cantilever	Through Hole	18	36	Non Specified - Dual Edge	Dual	0.156 in	3.96 mm	Gold	Wire Wrap	10 Áin	0.25 Ám	Copper Alloy	Side Mount Opening Unthreaded	Polyester Thermoplastic				3.25 mm	0.128 in
EDAC Inc. 337-036-500-668	-40 °C	105 ░C	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Female	Cantilever	Through Hole	36	36	Non Specified - Single Edge	Single	0.156 in	3.96 mm	Gold	Solder Eyelet(s)	10 Áin	0.25 Ám	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Polyester Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 15.90
Newark	Each	1	$ 15.95
		100	$ 10.83
		250	$ 9.38
		500	$ 7.46
		1000	$ 6.22

Description

General part information

337-036 Series

36 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
