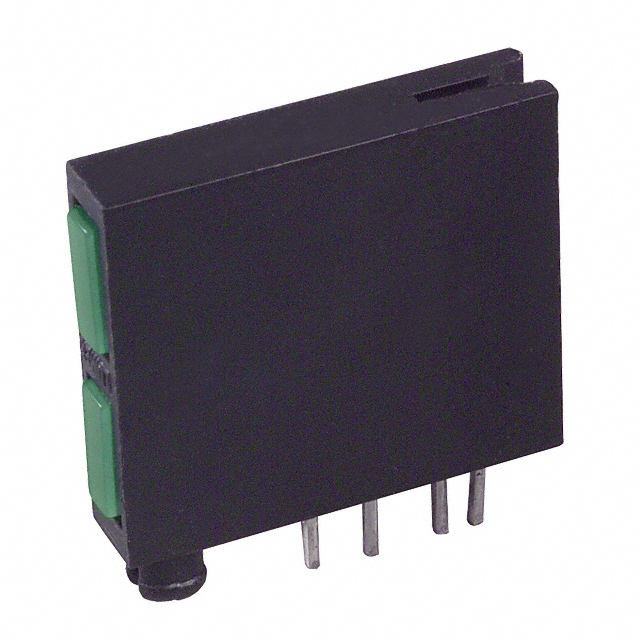

SSF-LXH22573GGD

Active

Lumex Opto/Components Inc.

LED 2X5MM RA 2-HI GRN/GRN PCMNT

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH22573GGD

Active

Lumex Opto/Components Inc.

LED 2X5MM RA 2-HI GRN/GRN PCMNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH22573GGD	SSF-LXH22573 Series

Color	Green (x 2)	Red, Green (x 2)
Configuration	SIP, Bar - 2 High	SIP, Bar - 2 High
Lens Size [x]	5 mm	5 mm
Lens Size [y]	2 mm	2 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Type	Tinted, Diffused	Tinted, Diffused
Millicandela Rating	10 mcd	10 - 80 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	110 °	110 °
Voltage Rating	-	1.7 - 2 V
Wavelength - Peak	565 nm	565 - 660 nm

SSF-LXH22573 Series

LED 2X5MM RA 2-HI SUP RED PCMNT

Part	Viewing Angle	Configuration	Lens Style	Lens Size [y]	Lens Size [x]	Millicandela Rating	Mounting Type	Lens Type	Voltage Rating	Wavelength - Peak	Color
Lumex Opto/Components Inc. SSF-LXH22573SRSRD	110 °	Bar - 2 High, SIP	Rectangle with Flat Top	2 mm	5 mm	80 mcd	Through Hole, Right Angle	Diffused, Tinted	1.7 V	660 nm	Red
Lumex Opto/Components Inc. SSF-LXH22573GGD	110 °	Bar - 2 High, SIP	Rectangle with Flat Top	2 mm	5 mm	10 mcd	Through Hole, Right Angle	Diffused, Tinted		565 nm	Green (x 2)
Lumex Opto/Components Inc. SSF-LXH22573IID	110 °	Bar - 2 High, SIP	Rectangle with Flat Top	2 mm	5 mm	10 mcd	Through Hole, Right Angle	Diffused, Tinted	2 V	635 nm	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSF-LXH22573 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 2 High, SIP Green (x 2) Diffused, Tinted 2.2V 20mA Rectangle with Flat Top 5.00mm x 2.00mm Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
