88240 0101000

Active

Belden Inc.

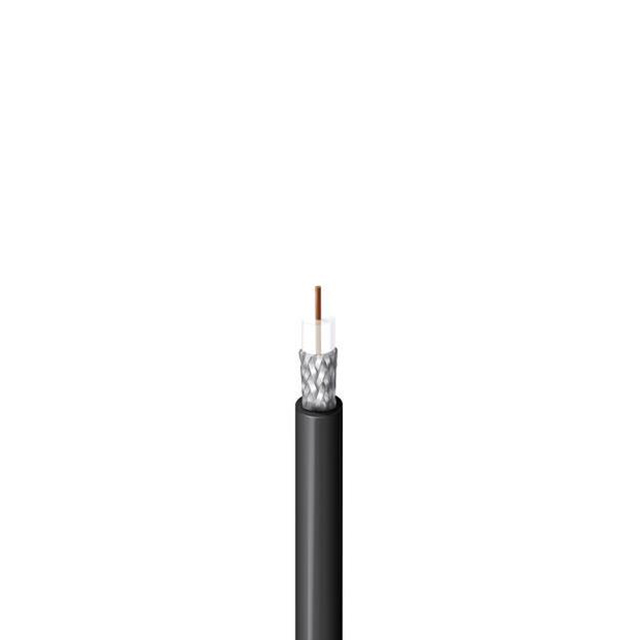

#20 COAX FEP RG58/U

Search across all available documentation for this part.

Active

Belden Inc.

#20 COAX FEP RG58/U

Technical Specifications

Parameters and characteristics for this part

Specification	88240 0101000

Cable Group	RG-58
Cable Type	Coaxial - Plenum
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	2.72 mm
Dielectric Diameter [diameter]	0.107 in
Dielectric Material	Fluorinated Ethylene-Propylene (FEP)
Features	UV Resistant
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	4.04 mm
Jacket (Insulation) Diameter [diameter]	0.159 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	RF Signal
VoP, Velocity of Propagation	70
Wire Gauge	20 AWG

Part	Shield Type	Conductor Material	Wire Gauge	Cable Group	Cable Type	Conductor Strand	Jacket Color	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	VoP, Velocity of Propagation	Dielectric Material	Length	Length	Shield Material	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Shield Coverage	Usage	Impedance	Jacket (Insulation) Material
Belden Inc. 88240 0101000	Braid	Copper Bare	20 AWG	RG-58	Coaxial - Plenum	Solid	Black	2.72 mm	0.107 in	70	Fluorinated Ethylene-Propylene (FEP)	304.8 m	1000 ft	Copper Tinned	200 °C	-70 °C	4.04 mm	0.159 in	UV Resistant	95 %	RF Signal	50 Ohms	Fluorinated Ethylene-Propylene (FEP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.96

General part information

Coaxial - Plenum Cable 20 AWG RG-58 1000.0' (304.80m) 50 Ohms
