FN9255S-15-06
ActiveTE Connectivity Raychem Cable Protection

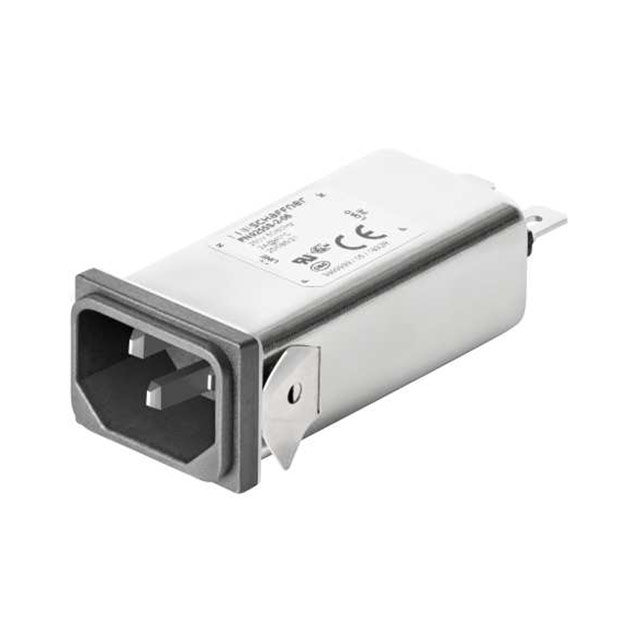

PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FN9255S-15-06
ActiveTE Connectivity Raychem Cable Protection
PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN9255S-15-06 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | CQC, CE, UR, ENEC |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Filter | 15 A |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 29.5 mm |
| Panel Cutout Dimensions [y] | 21 mm |
| Panel Thickness [Max] | 2.2 mm |
| Panel Thickness [Max] | 0.087 " |
| Panel Thickness [Min] | 0.059 in |
| Panel Thickness [Min] | 1.5 mm |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.34 | |
| 10 | $ 14.12 | |||
| 25 | $ 12.77 | |||
| 50 | $ 11.86 | |||
| 100 | $ 11.04 | |||
| 250 | $ 10.06 | |||
| 500 | $ 9.41 | |||
| 1000 | $ 8.82 | |||
Description
General part information
FN9255S Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
