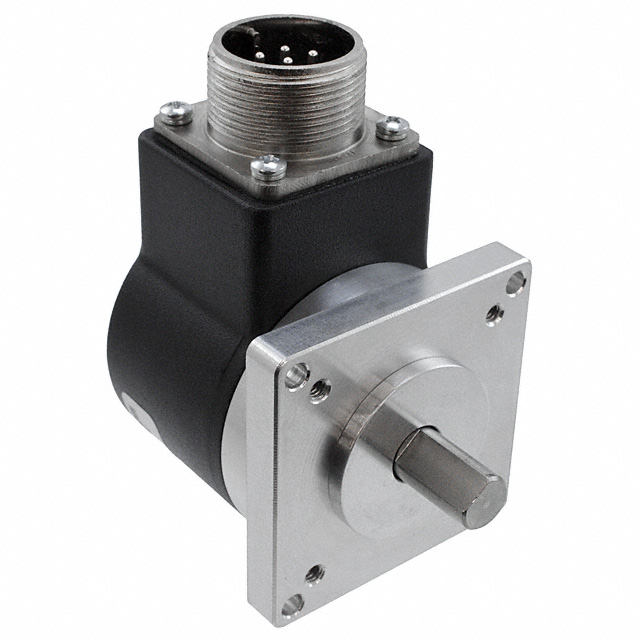

ZDH1200H
ActiveRED LION CONTROLS
ROTARY ENCODER OPTICAL 1200PPR
Deep-Dive with AI
Search across all available documentation for this part.
ZDH1200H
ActiveRED LION CONTROLS
ROTARY ENCODER OPTICAL 1200PPR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZDH1200H |
|---|---|
| Actuator Type | 3/8" Dia Flatted End |
| Detent | False |
| Encoder Type | Optical |
| Mounting Type | Chassis Mount |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 1200 |
| Termination Style | Connector |
| Voltage - Supply [Max] | 28 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 739.25 | |
Description
General part information
ZDH1200 Series
ROTARY ENCODER OPTICAL 1200PPR
Documents
Technical documentation and resources
No documents available
