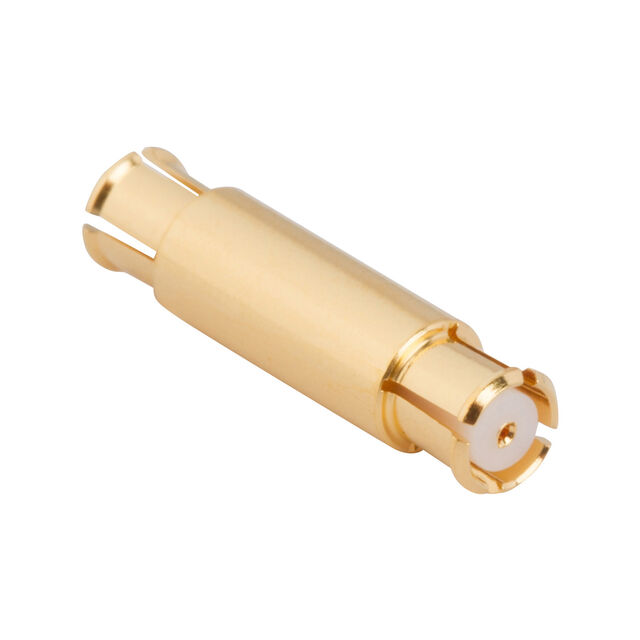

SMP-FS2A-145

Active

AMPHENOL RF

ADAPTER, SMP PLUG TO SMP PLUG, F

Deep-Dive with AI

Search across all available documentation for this part.

SMP-FS2A-145

Active

AMPHENOL RF

ADAPTER, SMP PLUG TO SMP PLUG, F

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMP-FS2A-145	SMP-FS2A Series

Adapter Series	SMP to SMP	SMP to SMP
Adapter Type	Plug to Plug	Plug to Plug
Body Finish	Gold	Gold
Body Material	Beryllium Copper	Beryllium Copper
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	Female Socket, SMP Plug	Female Socket, SMP Plug
Convert To (Adapter End)	SMP Plug, Female Socket	SMP Plug, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Snap-On
Frequency - Max [Max]	26.5 GHz	26.5 - 40 GHz
Impedance	50 Ohms	50 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Style	Straight	Straight

SMP-FS2A Series

ADAPTER, SMP PLUG TO SMP PLUG, F

Part	Center Contact Material	Mounting Type	Convert To (Adapter End)	Body Material	Adapter Type	Dielectric Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Conversion Type	Convert From (Adapter End)	Fastening Type	Center Gender	Impedance	Frequency - Max [Max]	Style	Adapter Series
AMPHENOL RF SMP-FS2A-224	Beryllium Copper	Free Hanging (In-Line)	Female Socket, SMP Plug	Beryllium Copper	Plug to Plug	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Gold	Same Series	Female Socket, SMP Plug	Snap-On	Female to Female	50 Ohms	26.5 GHz	Straight	SMP to SMP
AMPHENOL RF SMP-FS2A-1259	Beryllium Copper	Free Hanging (In-Line)	Female Socket, SMP Plug	Beryllium Copper	Plug to Plug	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Gold	Same Series	Female Socket, SMP Plug	Snap-On	Female to Female	50 Ohms	40 GHz	Straight	SMP to SMP
AMPHENOL RF SMP-FS2A-990	Beryllium Copper	Free Hanging (In-Line)	Female Socket, SMP Plug	Beryllium Copper	Plug to Plug	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Gold	Same Series	Female Socket, SMP Plug	Snap-On	Female to Female	50 Ohms	26.5 GHz	Straight	SMP to SMP
AMPHENOL RF SMP-FS2A-145	Beryllium Copper	Free Hanging (In-Line)	Female Socket, SMP Plug	Beryllium Copper	Plug to Plug	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Gold	Same Series	Female Socket, SMP Plug	Snap-On	Female to Female	50 Ohms	26.5 GHz	Straight	SMP to SMP
AMPHENOL RF SMP-FS2A-696	Beryllium Copper	Free Hanging (In-Line)	Female Socket, SMP Plug	Beryllium Copper	Plug to Plug	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Gold	Same Series	Female Socket, SMP Plug	Snap-On	Female to Female	50 Ohms	26.5 GHz	Straight	SMP to SMP
AMPHENOL RF SMP-FS2A-645	Beryllium Copper	Free Hanging (In-Line)	Female Socket, SMP Plug	Beryllium Copper	Plug to Plug	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Gold	Same Series	Female Socket, SMP Plug	Snap-On	Female to Female	50 Ohms	26.5 GHz	Straight	SMP to SMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 8.47
		10	$ 7.66
		25	$ 7.24
		50	$ 7.06
		100	$ 6.71
		250	$ 6.00
		500	$ 5.65
		1000	$ 4.94

Description

General part information

SMP-FS2A Series

Adapter Coaxial Connector SMP Plug, Female Socket To SMP Plug, Female Socket 50 Ohms
