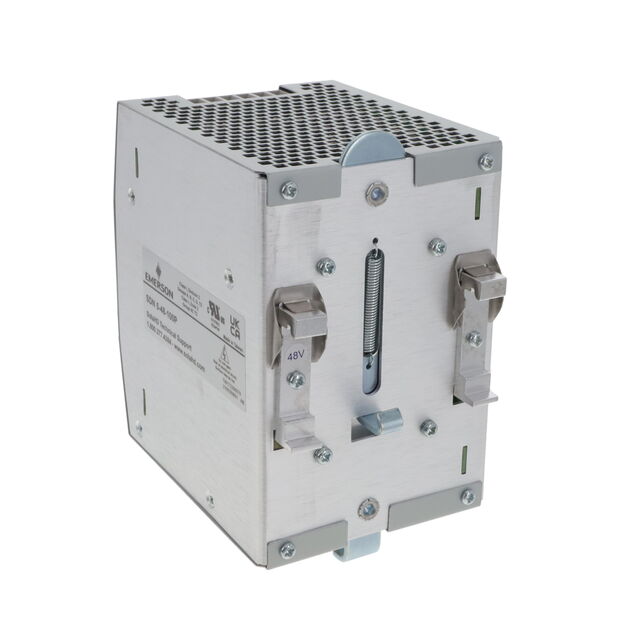

SDN5-48-100P

Active

SolaHD

AC/DC DIN RAIL SUPPLY 48V 240W

Search across all available documentation for this part.

Active

SolaHD

AC/DC DIN RAIL SUPPLY 48V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	SDN5-48-100P

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Max]	132 VAC
AC Voltage - Input [Min]	176 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CE, cURus, cULus
Current - Output (Max) [Max]	5 A
DC Voltage - Input (Max) [Max]	375 V
DC Voltage - Input (Min) [Min]	210 V
Efficiency	88 %
Features	Adjustable Output, IP20
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	240 W
Size / Dimension [x]	115.6 mm
Size / Dimension [x]	4.55 in
Size / Dimension [y]	82 mm
Size / Dimension [y]	3.23 "
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Voltage - Output 1	48 V

Part	Input Type	Applications	Efficiency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Features	Number of Outputs	Current - Output (Max) [Max]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	DC Voltage - Input (Min) [Min]	Power (Watts)	DC Voltage - Input (Max) [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]
SolaHD SDN5-24-480C	AC or DC	Hazardous Locations Industrial ITE (Commercial)	85 %	320 VAC	540 VAC	Adjustable Output IP20	1	5 A	24 V	4.85 "	110.7 mm	1.97 "	4.36 "	123.2 mm	50 mm	CE cULus cURus EAC	550 V
SolaHD SDN5-48-100P	AC or DC	Hazardous Locations Industrial ITE (Commercial)	88 %			Adjustable Output IP20	1	5 A	48 V				115.6 mm		82 mm	CE cULus cURus	210 V	240 W	375 V	176 VAC	264 VAC	85 VAC	132 VAC	4.88 "	124 mm	3.23 "	4.55 in	-10 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 48V 240W
