357-038-400-204

Active

EDAC Inc.

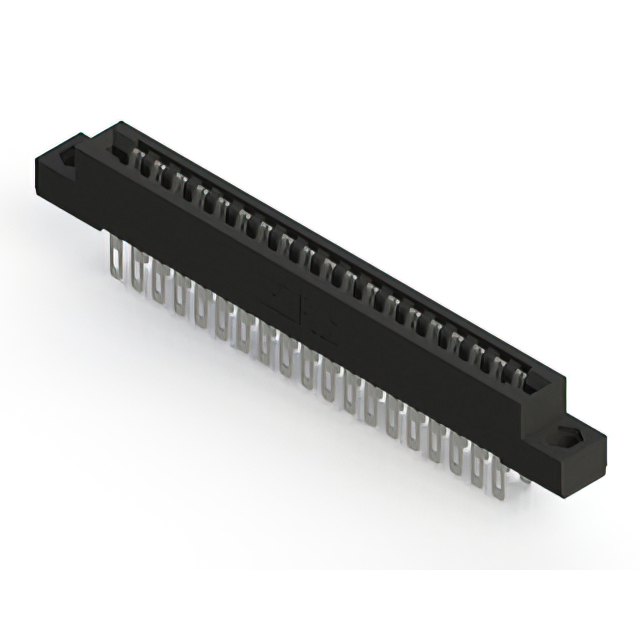

CARD EDGE CONNECTOR, 38 CONTACT(S), 2 ROW(S), FEMALE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-038-400-204

Active

EDAC Inc.

CARD EDGE CONNECTOR, 38 CONTACT(S), 2 ROW(S), FEMALE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-038-400-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	38
Number of Positions/Bay/Row [custom]	19
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

357-038 Series

...

Part	Number of Positions	Mounting Type	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Flange Feature	Card Type	Pitch [x]	Pitch [x]	Termination	Contact Material	Number of Positions/Bay/Row [custom]	Gender	Contact Type	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Color	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 357-038-554-107	76	Surface Mount	Polyester Thermoplastic	10 Áin	0.25 Ám	2	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	0.156 in	3.96 mm	Solder Eyelet(s)	Copper Alloy	38	Female	Semi Bellows	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	1	-40 °C	105 ░C	Gold	Black
EDAC Inc. 357-038-560-202	38	Board Edge Straddle Mount	Polyester Thermoplastic	10 Áin	0.25 Ám	2	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	0.156 in	3.96 mm	Solder	Copper Alloy	19	Female	Semi Bellows	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	-40 °C	105 ░C	Gold	Black	3.25 mm	0.128 "	Card Extender
EDAC Inc. 357-038-400-204	38	Through Hole	Polyester Thermoplastic			2	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	0.156 in	3.96 mm	Solder Eyelet(s)	Copper Alloy	19	Female	Semi Bellows	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	-40 °C	105 ░C	Tin	Black	3.96 mm	0.156 in
EDAC Inc. 357-038-540-278	38	Through Hole	Polyester Thermoplastic	10 Áin	0.25 Ám	2	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	0.156 in	3.96 mm	Wire Wrap	Copper Alloy	19	Female	Semi Bellows	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	-40 °C	105 ░C	Gold	Black			Card Guides
EDAC Inc. 357-038-545-158	38	Through Hole	Polyester Thermoplastic	10 Áin	0.25 Ám	1	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	0.156 in	3.96 mm	Wire Wrap	Copper Alloy	38	Female	Semi Bellows	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	1	-40 °C	105 ░C	Gold	Black			Card Guides
EDAC Inc. 357-038-459-278	38	Through Hole Right Angle	Polyester Thermoplastic			2	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	0.156 in	3.96 mm	Solder	Copper Alloy	19	Female	Semi Bellows	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	-40 °C	105 ░C	Tin	Black			Card Guides
EDAC Inc. 357-038-441-102	76	Through Hole	Polyester Thermoplastic			2	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	0.156 in	3.96 mm	Wire Wrap	Copper Alloy	38	Female	Semi Bellows	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	1	-40 °C	105 ░C	Tin	Black	3.25 mm	0.128 "
EDAC Inc. 357-038-401-104	76	Through Hole	Polyester Thermoplastic			2	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	0.156 in	3.96 mm	Solder Eyelet(s)	Copper Alloy	38	Female	Semi Bellows	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	1	-40 °C	105 ░C	Tin	Black	3.96 mm	0.156 in
EDAC Inc. 357-038-521-107	76	Through Hole	Polyester Thermoplastic	10 Áin	0.25 Ám	2	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	0.156 in	3.96 mm	Solder	Copper Alloy	38	Female	Semi Bellows	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	1	-40 °C	105 ░C	Gold	Black
EDAC Inc. 357-038-524-202	38	Through Hole	Polyester Thermoplastic	10 Áin	0.25 Ám	2	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	0.156 in	3.96 mm	Solder	Copper Alloy	19	Female	Semi Bellows	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	-40 °C	105 ░C	Gold	Black	3.25 mm	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 14.01

Description

General part information

357-038 Series

38 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
