17980-5PG-300

Active

Conxall/Switchcraft

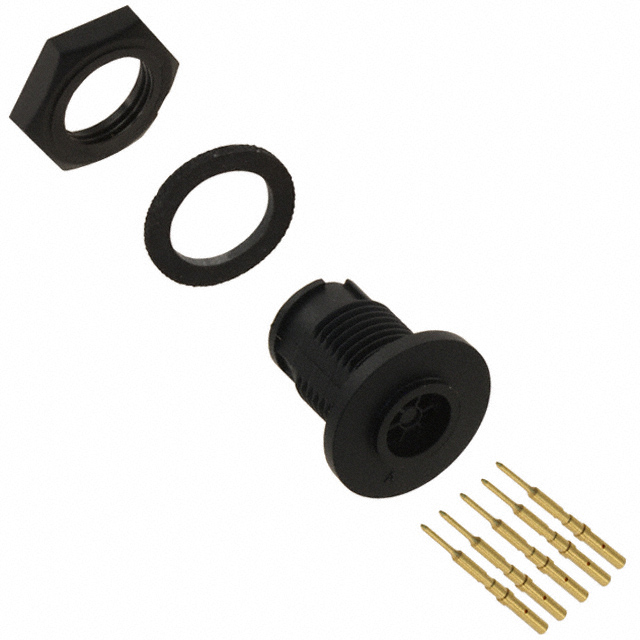

CONN RCPT MALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	17980-5PG-300

Applications	Medical, Data, Instrumentation, Industrial
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

CONN RCPT MALE 5POS GOLD CRIMP

Part	Orientation	Fastening Type	Material Flammability Rating	Mounting Feature	Color	Termination	Applications	Shielding	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Contact Finish - Mating	Voltage Rating	Ingress Protection	Contact Material	Current Rating (Amps)
Conxall/Switchcraft 17980-5PG-300	B	Bayonet Lock	UL94 HB	Bulkhead - Front Side Nut	Black	Crimp	Data, Industrial, Instrumentation, Medical	Unshielded	Male Pins, Receptacle	85 °C	-40 °C	Plastic	Gold	600 VAC	IP67 - Dust Tight, Waterproof	Copper Alloy	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.18

General part information

5 Position Circular Connector Receptacle, Male Pins Crimp
