163A16169X

Active

Amphenol CONEC

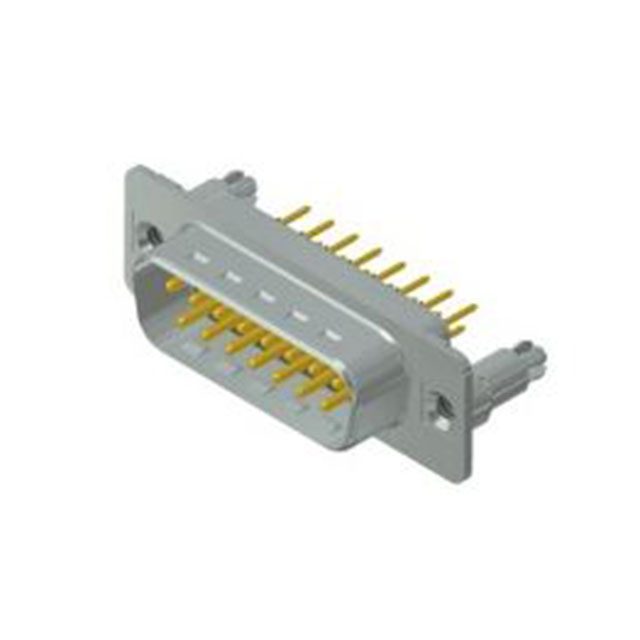

CONN D-SUB PLUG 15POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB PLUG 15POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	163A16169X

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	125 VDC

Part	Contact Material	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Features	Termination	Number of Rows	Color	Voltage Rating	Contact Type	Connector Style	Contact Finish Thickness	Contact Finish	Mounting Type	Material Flammability Rating	Current Rating (Amps)	Shell Size, Connector Layout	Number of Positions	Shell Size, Connector Layout
Amphenol CONEC 163A16179X	Copper Alloy	4-40 Board Side	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	B DB	3	Male Pins Plug	Board Lock Grounding Indents	Solder	2	Black	125 VDC	Signal	D-Sub	Flash	Gold	Through Hole	UL94 V-0	7.5 A
Amphenol CONEC 163A16169X	Copper Alloy	4-40 Board Side	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled			Male Pins Plug	Board Lock Grounding Indents	Solder	2	Black	125 VDC	Signal	D-Sub	Flash	Gold	Through Hole	UL94 V-0	7.5 A	2	15
Amphenol CONEC 163A16189X	Copper Alloy	4-40 Board Side	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled			Male Pins Plug	Board Lock Grounding Indents	Solder	2	Black	125 VDC	Signal	D-Sub	Flash	Gold	Through Hole	UL94 V-0	7.5 A		37	4 (DC C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Plug, Male Pins Connector
