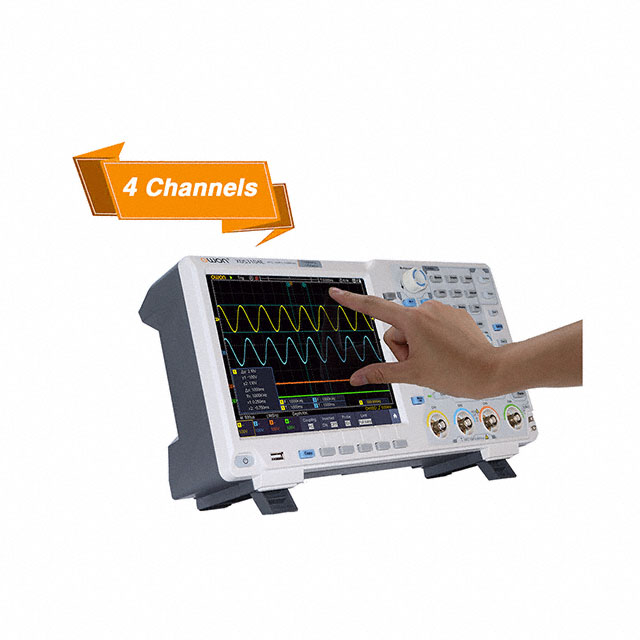

XDS3104EMWV

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 100MHZ 4 CH 1GS/S

Search across all available documentation for this part.

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 100MHZ 4 CH 1GS/S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 719.00

General part information

100 MHz Bench Oscilloscopes Ethernet, RS232, USB Interface LCD - Color Display 4 Channel CAT II 400V Record

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	XDS3104EMWV	XDS3104 Series

Bandwidth	100 MHz	100 MHz
Channels	4	4
Display Type	LCD - Color	LCD - Color
Function	Record	DMM, Record
Includes	-	Power Cord, Probe, Test Lead, Manual
Input Impedance	1 M, 15 pF	1 - 15 M
Interface	RS232, Ethernet, USB	USB, Ethernet, RS232
Memory Size	-	40 Mpts
Probe Type	-	Passive 10:1 (4)
Rise Time (Typ)	3.5 ns	3.5 ns
Sampling Rate (Per Second)	1 G	1 - 250 M
Type	Bench	Bench
Voltage - Input (Max) [Max]	400 V	400 V
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	100 VAC	100 VAC

O-SCOPE 100MHZ 4 CH 1GS/S

Part	Bandwidth	Channels	Function	Display Type	Sampling Rate (Per Second)	Rise Time (Typ)	Input Impedance	Includes	Probe Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Size	Type	Interface	Voltage - Input (Max) [Max]
Owon Technology Lilliput Electronics (USA) Inc XDS3104E	100 MHz	4	DMM, Record	LCD - Color	125 M	3.5 ns	1 M, 15 pF	Manual, Power Cord, Probe, Test Lead	Passive 10:1 (4)	100 VAC	240 VAC	40 Mpts	Bench	Ethernet, USB
Owon Technology Lilliput Electronics (USA) Inc XDS3104EMWV	100 MHz	4	Record	LCD - Color	1 G	3.5 ns	1 M, 15 pF			100 VAC	240 VAC		Bench	Ethernet, RS232, USB	400 V
Owon Technology Lilliput Electronics (USA) Inc XDS3104A	100 MHz	4	DMM, Record	LCD - Color	250 M	3.5 ns	1 M, 15 pF	Manual, Power Cord, Probe, Test Lead	Passive 10:1 (4)	100 VAC	240 VAC	40 Mpts	Bench	Ethernet, USB	400 V
Owon Technology Lilliput Electronics (USA) Inc XDS3104EVM	100 MHz	4	Record	LCD - Color	1 G	3.5 ns	1 M, 15 pF			100 VAC	240 VAC		Bench	Ethernet, RS232, USB	400 V
Owon Technology Lilliput Electronics (USA) Inc XDS3104AE	100 MHz	4	DMM, Record	LCD - Color	125 M	3.5 ns	1 M, 15 pF	Manual, Power Cord, Probe, Test Lead	Passive 10:1 (4)	100 VAC	240 VAC	40 Mpts	Bench	Ethernet, USB
