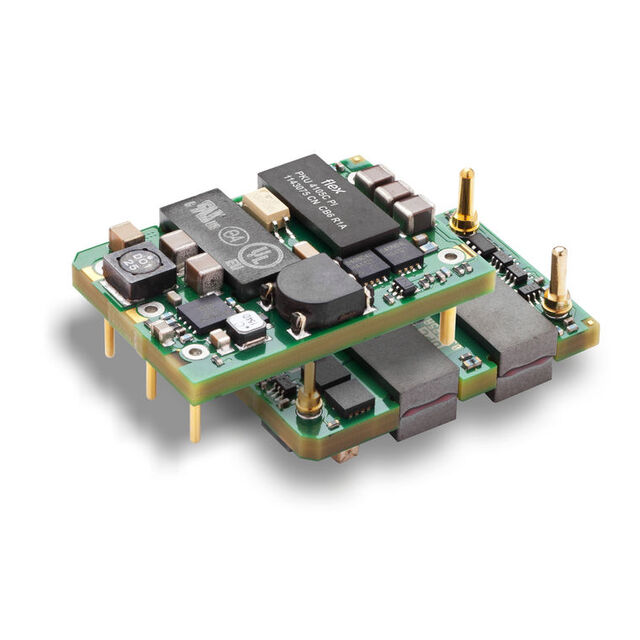

PKU4416ZSI

Active

Flex Power Modules

DC DC CONVERTER 24V 43W

Search across all available documentation for this part.

Active

Flex Power Modules

DC DC CONVERTER 24V 43W

Technical Specifications

Parameters and characteristics for this part

Specification	PKU4416ZSI

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	1.8 A
Efficiency	91.7 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Sixteenth Brick
Power (Watts)	43 W
Size / Dimension [x]	1.3 "
Size / Dimension [x]	33 mm
Size / Dimension [y]	0.9 "
Size / Dimension [y]	22.9 mm
Size / Dimension [z]	0.38 in
Size / Dimension [z]	9.6 mm
Standard Number	62368-1
Supplier Device Package	Sixteenth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	60 V
Voltage - Input (Min) [Min]	28 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	24 V

Part	Standard Number	Approval Agency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Control Features	Efficiency	Voltage - Input (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Type	Power (Watts)	Features	Mounting Type	Applications	Number of Outputs	Voltage - Isolation	Voltage - Output 1
Flex Power Modules PKU4418GPI	62368-1	CB CSA IEC TUV UL	25 A	36 V	Sixteenth Brick	22.9 mm	33 mm	1.3 "	0.39 in	0.9 "	9.9 mm	Active Low Enable	86.8 %	75 V	Sixteenth Brick	120 °C	-45 °C	Isolated Module	45 W	Adjustable Output Remote On/Off Remote Sense	Through Hole	ITE (Commercial)	1	1.5 kV	1.8 V
Flex Power Modules PKU4416ZSI	62368-1	CB CSA IEC TUV UL	1.8 A	28 V	Sixteenth Brick	22.9 mm	33 mm	1.3 "	0.38 in	0.9 "	9.6 mm	Active Low Enable	91.7 %	60 V	Sixteenth Brick	125 °C	-40 °C	Isolated Module	43 W	Adjustable Output Remote On/Off	Surface Mount	ITE (Commercial)	1	1.5 kV	24 V
Flex Power Modules PKU4411EPI	62368-1	CB CSA IEC TUV UL	8 A	36 V	Sixteenth Brick	22.9 mm	33 mm	1.3 "	0.3 "	0.9 "	7.5 mm	Active Low Enable	90.8 %	72 V	Sixteenth Brick	105 C	-40 °C	Isolated Module	40 W	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)	1	1.5 kV	5 V
Flex Power Modules PKU4411ESI	62368-1	CB CSA IEC TUV UL	8 A	36 V	Sixteenth Brick	22.9 mm	33 mm	1.3 "	0.3 "	0.9 "	7.5 mm	Active Low Enable	90.8 %	72 V	Sixteenth Brick	105 C	-40 °C	Isolated Module	40 W	Adjustable Output Remote On/Off	Surface Mount	ITE (Commercial)	1	1.5 kV	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	180	$ 29.89

General part information

Isolated Module DC DC Converter 1 Output 24V 1.8A 28V - 60V Input
