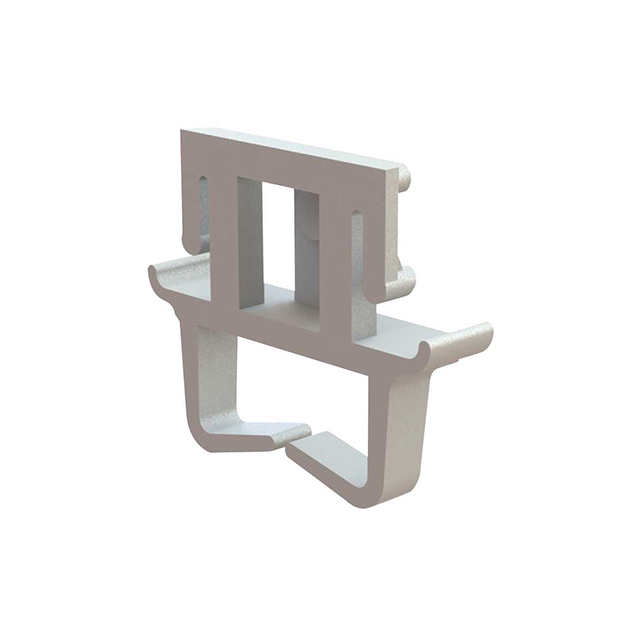

EHWSE-1-01

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE EDGE MOUNT

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE EDGE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	EHWSE-1-01

Color	Natural
Height [z]	0.91 in
Height [z]	23.11 mm
Length [x]	27.94 mm
Length [x]	1.1 "
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Edge Mount, Fastener
Opening Size [x]	16 mm
Opening Size [x]	0.63 in
Opening Size [y]	0.3 in
Opening Size [y]	7.62 mm
Panel Hole Size [diameter]	0.197 in
Panel Hole Size [diameter]	5 mm
Panel Thickness [Max]	2.01 mm
Panel Thickness [Max]	0.079 "
Panel Thickness [Min]	0.039 in
Panel Thickness [Min]	0.99 mm
Type	Clip, Wire Saddle
Width [y]	6.1 mm
Width [y]	0.24 in

Part	Length [x]	Length [x]	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Width [y]	Width [y]	Height [z]	Height [z]	Mounting Type	Opening Size [x]	Opening Size [y]	Opening Size [y]	Opening Size [x]	Color	Type	Material	Material Flammability Rating	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]
Essentra Access Solutions EHWSE-1-01	27.94 mm	1.1 "	0.197 in	5 mm	6.1 mm	0.24 in	0.91 in	23.11 mm	Edge Mount Fastener	16 mm	0.3 in	7.62 mm	0.63 in	Natural	Clip Wire Saddle	Polyamide (PA66) Nylon 6/6	UL94 V-2	0.039 in	2.01 mm	0.99 mm	0.079 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Edge Mount, Fastener 0.630" L x 0.300" H (16.00mm x 7.62mm)
