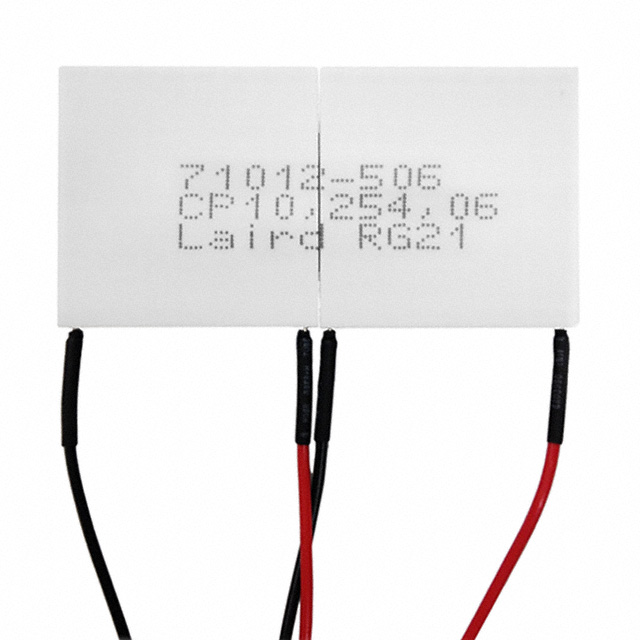

71012-506

Active

Laird Thermal Systems, Inc.

PELTIER MOD CP10,254,06,L1,W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER MOD CP10,254,06,L1,W4.5

Technical Specifications

Parameters and characteristics for this part

Part	Current - Max [Max]	Features	Height [z]	Resistance	Voltage - Max [Max]	Number of Stages	Qmax @ Th	Operating Temperature	Delta Tmax @ Th	Size / Dimension [x]	Size / Dimension [y]
Laird Thermal Systems, Inc. 71012-506	3 A	Lead Wires Non-Sealed	3.58 mm	8.69 Ohms	29 V	1	52.9 W	80 °C	67 °C	59.44 mm	29.72 mm
Laird Thermal Systems, Inc. 71012-507	3 A	Lead Wires Sealed - Epoxy	3.81 mm	8.69 Ohms	29 V	1	52.9 W	80 °C	67 °C	29.72 mm	29.72 mm
Laird Thermal Systems, Inc. 71012-511	3 A	Lead Wires Sealed - Silicone RTV	3.81 mm	8.69 Ohms	29 V	1	52.9 W	80 °C	67 °C	60 mm	30 mm
