1375794-4

Active

TE Connectivity AMP Connectors

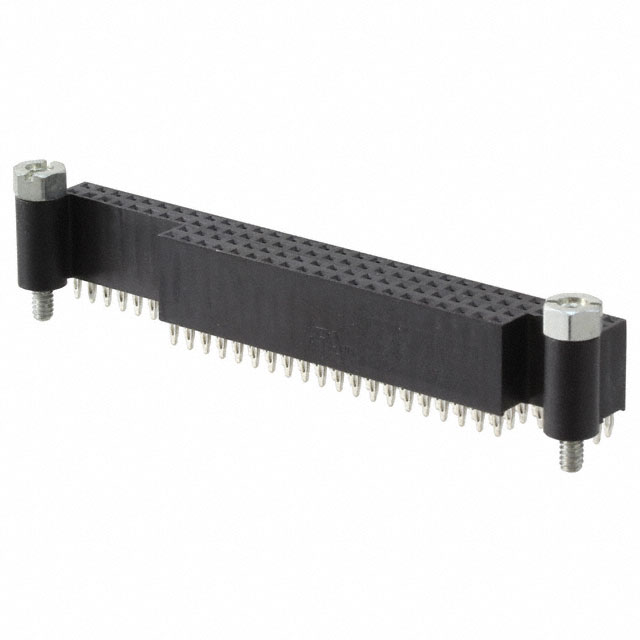

CONN NON-STKTHRU PC/104 104P PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN NON-STKTHRU PC/104 104P PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1375794-4	1375794 Series

Color	Black	Black
Connector Style	PC/104	PC/104
Connector Type	Non-Stackthrough, Unkeyed (PC/104)	Non-Stackthrough, Unkeyed (PC/104)
Contact Finish	Gold	Gold
Contact Finish Thickness	15 µin	15 µin
Contact Finish Thickness	0.38 µm	0.38 µm
Features	Screwlocks	Screwlocks
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	104	104
Number of Positions Loaded	All	All
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Termination	Press-Fit	Press-Fit

CONN NON-STKTHRU PC/104 104P PCB

Part	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Positions Loaded	Termination	Pitch [x]	Pitch [x]	Mounting Type	Connector Style	Material Flammability Rating	Number of Positions
TE Connectivity AMP Connectors 1375794-4	Black	105 ░C	-55 °C	Gold	Non-Stackthrough, Unkeyed (PC/104)	15 µin	0.38 µm	Screwlocks	All	Press-Fit	2.54 mm	0.1 in	Through Hole	PC/104	UL94 V-0	104
TE Connectivity AMP Connectors 1375794-2	Black	105 ░C	-55 °C	Gold	Non-Stackthrough, Unkeyed (PC/104)	15 µin	0.38 µm	Screwlocks	All	Press-Fit	2.54 mm	0.1 in	Through Hole	PC/104	UL94 V-0	104

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	105	$ 23.26

General part information

104 Connector Non-Stackthrough, Unkeyed (PC/104) Through Hole Black PC/104
