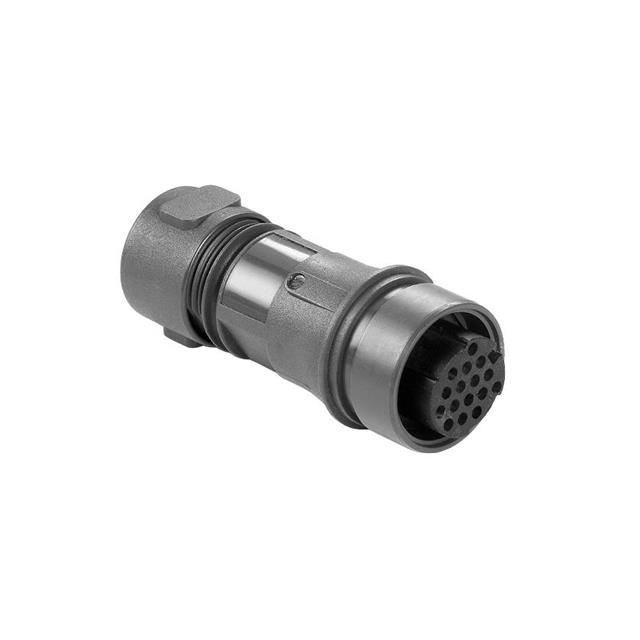

PXP6011/02S/CR/0709
ActiveBULGIN LIMITED
6000 SERIES INLINE CONNECTOR 2 POLE
Deep-Dive with AI
Search across all available documentation for this part.
PXP6011/02S/CR/0709
ActiveBULGIN LIMITED
6000 SERIES INLINE CONNECTOR 2 POLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PXP6011/02S/CR/0709 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Type | Crimp and Solder Cup |
| Fastening Type | Push-Twist |
| Features | Backshell |
| Housing Color | Gray |
| Ingress Protection | IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polycarbonate/Polybutylene Terephthalate (PBT), Halogen Free |
| Shielding | Unshielded |
| Type | For Female Sockets |
buccaneer-6000 Series
| Part | Note | Contact Shape | Ingress Protection | Primary Material | Shielding | Connector Type | Mounting Type | Housing Color | Shell Material | Number of Positions | Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Fastening Type | Features | Orientation | Shell Finish | Material Flammability Rating | Current Rating (Amps) | Contact Finish - Mating | Contact Material | Termination | Color | Voltage Rating | Cable Opening [custom] | Cable Opening [custom] | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | Contacts Not Included | Circular | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Metal | Unshielded | Receptacle Housing | Free Hanging (In-Line) | Silver | Brass | 2 | For Male Pins | -40 °C | 120 °C | Crimp and Solder Cup | Push-Twist | Backshell | Keyed | Nickel | ||||||||||||
BULGIN LIMITED | Contacts Not Included | Circular | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Plastic | Unshielded | Receptacle Housing | Free Hanging (In-Line) | Gray | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | 22 | For Male Pins | -40 °C | 120 °C | Crimp and Solder Cup | Push-Twist | Backshell | Keyed | UL94 V-0 | ||||||||||||
BULGIN LIMITED | Contacts Not Included | Circular | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Plastic | Unshielded | Plug Housing | Free Hanging (In-Line) | Gray | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | 22 | For Male Pins | -40 °C | 120 °C | Crimp and Solder Cup | Push-Twist | Backshell Coupling Nut | Keyed | UL94 V-0 | ||||||||||||
BULGIN LIMITED | Contacts Not Included | Circular | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Plastic | Unshielded | Receptacle Housing | Free Hanging (In-Line) | Gray | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | 2 | For Male Pins | -40 °C | 120 °C | Crimp and Solder Cup | Push-Twist | Backshell | Keyed | UL94 V-0 | ||||||||||||
BULGIN LIMITED | Contacts Not Included | Circular | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Plastic | Unshielded | Receptacle Housing | Free Hanging (In-Line) | Gray | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | 16 | For Male Pins | -40 °C | 120 °C | Crimp and Solder Cup | Push-Twist | Backshell | Keyed | UL94 V-0 | ||||||||||||
BULGIN LIMITED | Contacts Not Included | Circular | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Plastic | Unshielded | Receptacle Housing | Free Hanging (In-Line) | Gray | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | 16 | For Female Sockets | -40 °C | 120 °C | Crimp and Solder Cup | Push-Twist | Backshell | Keyed | UL94 V-0 | ||||||||||||
BULGIN LIMITED | Contacts Not Included | Circular | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Plastic | Unshielded | Receptacle Housing | Free Hanging (In-Line) | Gray | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | 2 | For Female Sockets | -40 °C | 120 °C | Crimp and Solder Cup | Push-Twist | Backshell | Keyed | UL94 V-0 | ||||||||||||
BULGIN LIMITED | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Plastic | Unshielded | Female Sockets Plug | Free Hanging (In-Line) | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | 2 | -40 °C | 120 °C | Push-Twist | UV Resistant | Keyed | UL94 V-0 | 16 A | Nickel | Brass | Screw | Gray | 277 VAC/DC | |||||||||||
BULGIN LIMITED | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Plastic | Unshielded | Female Sockets Plug | Free Hanging (In-Line) | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | -40 °C | 120 °C | Push-Twist | UV Resistant | Keyed | UL94 V-0 | 16 A | Nickel | Brass | Screw | Gray | 277 VAC/DC | 0.276 in 0.354 in | 7 mm 9 mm | 3 | 1 | 2 | |||||||
BULGIN LIMITED | Contacts Not Included | Circular | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Plastic | Unshielded | Receptacle Housing | Free Hanging (In-Line) | Gray | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | For Male Pins | -40 °C | 120 °C | Crimp and Solder Cup | Push-Twist | Backshell | Keyed | UL94 V-0 | 3 | 1 | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
buccaneer-6000 Series
2 (Power) Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
