1055065-1
ActiveTE Connectivity AMP Connectors

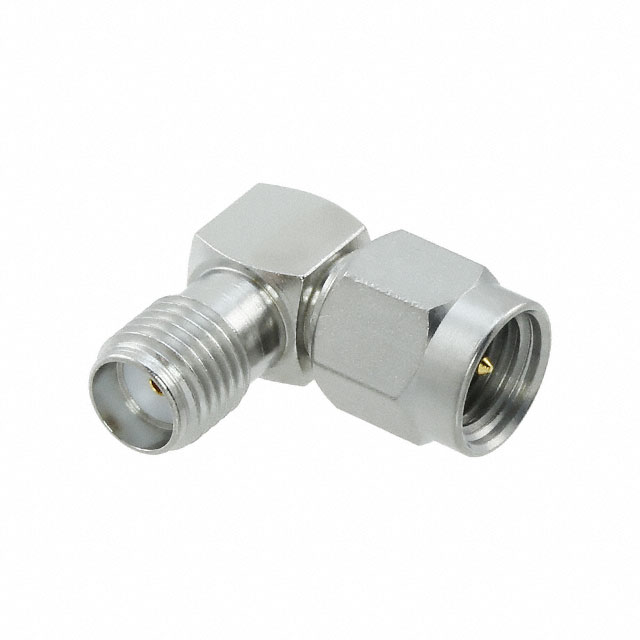

CONN ADAPT PLUG-JACK OSM 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1055065-1
ActiveTE Connectivity AMP Connectors
CONN ADAPT PLUG-JACK OSM 50 OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1055065-1 |
|---|---|
| Adapter Series | OSM to OSM |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Same Series |
| Convert From (Adapter End) | SMA Plug, Male Pin |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Style | Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1055065 Series
CONN ADAPT PLUG-JACK OSM 50 OHM
| Part | Dielectric Material | Adapter Type | Body Material | Center Contact Material | Impedance | Mating Cycles | Mounting Type | Style | Convert To (Adapter End) | Adapter Series | Conversion Type | Center Contact Plating | Frequency - Max [Max] | Convert From (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1055065-1 | Polytetrafluoroethylene (PTFE) | Plug to Jack | Stainless Steel | Beryllium Copper | 50 Ohms | 500 | Free Hanging (In-Line), Right Angle | Right Angle | Female Socket, SMA Jack | OSM to OSM | Same Series | Gold | 18 GHz | SMA Plug, Male Pin |
Description
General part information
1055065 Series
Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
