Q-1V013000R001M

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE JCK-JCK 3.3'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE JCK-JCK 3.3'

Technical Specifications

Parameters and characteristics for this part

Part	Cable Type	2nd Contact Gender	1st Contact Gender	Length	Length	Length	2nd Connector Mounting Type	2nd Connector	Overall Impedance	Color	1st Connector	Features	1st Connector Mounting Type	Style	Frequency - Max [Max]	Length [x]	Length [x]
Amphenol Custom Cable Q-1V013000R003M	RG-316 DB	Female	Female	3 m	118.1 in	9.8 '	Free Hanging (In-Line)	N-Type Jack	50 Ohms	Copper	MCX Jack	Shielded	Free Hanging (In-Line)	MCX to N-Type	6000 MHz
Amphenol Custom Cable Q-1V013000R084i	RG-316 DB	Female	Female	2.1 m	84 in	7 ft	Free Hanging (In-Line)	N-Type Jack	50 Ohms	Copper	MCX Jack	Shielded	Free Hanging (In-Line)	MCX to N-Type	6000 MHz
Amphenol Custom Cable Q-1V013000R001M	RG-316 DB	Female	Female	1 m	39.4 in	3.3 ft	Free Hanging (In-Line)	N-Type Jack	50 Ohms	Copper	MCX Jack	Shielded	Free Hanging (In-Line)	MCX to N-Type	6000 MHz
Amphenol Custom Cable Q-1V013000R.25M	RG-316 DB	Female	Female				Free Hanging (In-Line)	N-Type Jack	50 Ohms	Copper	MCX Jack	Shielded	Free Hanging (In-Line)	MCX to N-Type	6000 MHz	9.843 "	250 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

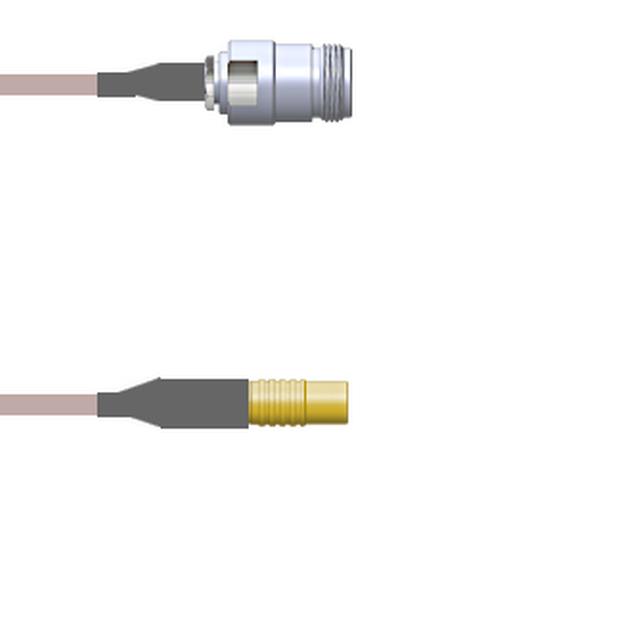

Cable Assembly Coaxial MCX to N-Type RG-316 DB 39.4" (1.0m) 3.3'

Technical documentation and resources

No documents available
