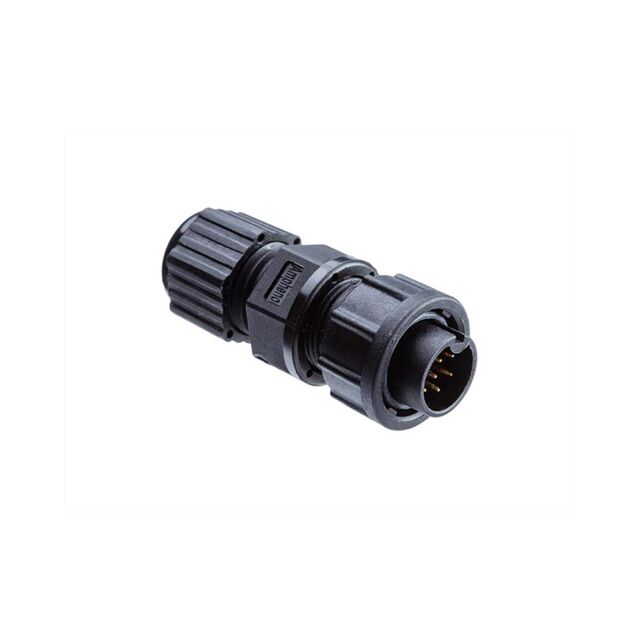

BB-03BFMA-SL7001

Active

Amphenol LTW

STANDARD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BB-03BFMA-SL7001

Active

Amphenol LTW

STANDARD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BB-03BFMA-SL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [diameter]	4.5 mm, 6.5 mm
Cable Opening [diameter]	0.256 in, 0.177 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Finish	Nickel
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	250 VAC

BB-03BFMA Series

Part	Primary Material	Shielding	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Color	Number of Positions	Shell Size - Insert	Insert Material	Orientation	Fastening Type	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Mounting Type	Shell Material	Current Rating (Amps)	Material Flammability Rating	Termination	Contact Material	Features	Connector Type	Ingress Protection	Backshell Material, Plating	Cable Opening [diameter]	Cable Opening [diameter]	Shell Finish	Housing Color	Contact Shape	Type	Contact Type	Note
Amphenol LTW BB-03BFMA-QL8LPP	Plastic	Unshielded	Gold	-40 °C	105 ░C	300 VAC	Black	3	B	Polyamide (PA) Nylon Glass Filled	Keyed	Push-Pull	0.394 in	8 mm	10 mm	0.315 in	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	10 A	UL94 V-0	Crimp	Copper Alloy	Backshell	Male Pins Plug	IP68 - Dust Tight Waterproof
Amphenol LTW BB-03BFMA-SL7001	Plastic	Unshielded	Gold	-40 °C	105 ░C	250 VAC	Black		B	Polyamide (PA) Nylon Glass Filled	Keyed						Free Hanging (In-Line)		10 A	UL94 V-0		Copper Alloy	Backshell Coupling Nut	Male Pins Plug	IP67 - Dust Tight Waterproof	Nylon Polyamide (PA)	4.5 mm 6.5 mm	0.177 in 0.256 in	Nickel
Amphenol LTW BB-03BFMA-QL8LNP	Plastic	Unshielded		-40 °C	105 ░C				B	Thermoplastic	Keyed	Push-Pull					Free Hanging (In-Line)						Backshell	Plug Housing	IP68 - Dust Tight Waterproof					Black	Circular	For Male Pins	Crimp	Contacts Not Included
Amphenol LTW BB-03BFMA-SL6001	Plastic	Unshielded	Gold	-40 °C	105 ░C	250 VAC	Black		B	Polyamide (PA) Nylon Glass Filled	Keyed						Free Hanging (In-Line)		10 A	UL94 V-0		Copper Alloy	Backshell Coupling Nut	Male Pins Plug	IP66	Nylon Polyamide (PA)			Nickel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.22
		10	$ 10.10
		100	$ 9.02
		1000	$ 6.68

Description

General part information

BB-03BFMA Series

3 Position Circular Connector Plug, Male Pins Solder Cup
