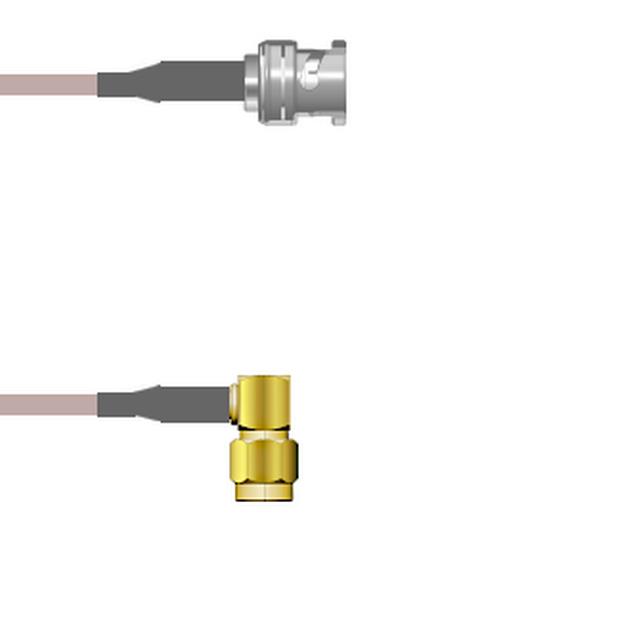

Q-0K035000R2.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLUG-PLUG 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0K035000R2.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLUG-PLUG 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0K035000R2.5M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0K0350 Series

Part	2nd Connector Mounting Type	2nd Connector	Frequency - Max [Max]	Features	Style	1st Connector Mounting Type	1st Connector	Overall Impedance	Length	Length	Length	Cable Type	2nd Contact Gender	Color	1st Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-0K035000R072i	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	Shielded	BNC to SMA	Free Hanging (In-Line)	BNC Plug	50 Ohms	6 ft	72 in	1.8 m	RG-316 DB	Male	Copper	Male
Amphenol Custom Cable Q-0K035000R018i	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	Shielded	BNC to SMA	Free Hanging (In-Line)	BNC Plug	50 Ohms				RG-316 DB	Male	Copper	Male	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0K035000R060i	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	Shielded	BNC to SMA	Free Hanging (In-Line)	BNC Plug	50 Ohms	5 ft	5 '	1.5 m	RG-316 DB	Male	Copper	Male
Amphenol Custom Cable Q-0K035000R024i	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	Shielded	BNC to SMA	Free Hanging (In-Line)	BNC Plug	50 Ohms		24 "	609.6 mm	RG-316 DB	Male	Copper	Male
Amphenol Custom Cable Q-0K035000R0.5M	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	Shielded	BNC to SMA	Free Hanging (In-Line)	BNC Plug	50 Ohms		19.69 "	50 cm	RG-316 DB	Male	Copper	Male
Amphenol Custom Cable Q-0K035000R012i	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	Shielded	BNC to SMA	Free Hanging (In-Line)	BNC Plug	50 Ohms		12 "	304.8 mm	RG-316 DB	Male	Copper	Male
Amphenol Custom Cable Q-0K035000R009i	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	Shielded	BNC to SMA	Free Hanging (In-Line)	BNC Plug	50 Ohms		9 "	228.6 mm	RG-316 DB	Male	Copper	Male
Amphenol Custom Cable Q-0K035000R003i	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	Shielded	BNC to SMA	Free Hanging (In-Line)	BNC Plug	50 Ohms		3 in	76.2 mm	RG-316 DB	Male	Copper	Male
Amphenol Custom Cable Q-0K035000R2.5M	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	Shielded	BNC to SMA	Free Hanging (In-Line)	BNC Plug	50 Ohms	8.2 '	98.4 in	2.5 m	RG-316 DB	Male	Copper	Male
Amphenol Custom Cable Q-0K035000R1.5M	Free Hanging (In-Line)	SMA Plug Right Angle	4 GHz	Shielded	BNC to SMA	Free Hanging (In-Line)	BNC Plug	50 Ohms	4.9 ft	59.1 in	1.5 m	RG-316 DB	Male	Copper	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 369.05
		25	$ 361.71
		50	$ 354.36
		100	$ 347.02
		250	$ 339.68

Description

General part information

Q-0K0350 Series

Cable Assembly Coaxial BNC to SMA RG-316 DB 98.4" (2.5m) 8.2'

Documents

Technical documentation and resources

No documents available
