BQ20Z70EVM-001
ActiveTexas Instruments
MODULE EVAL BQ20Z70/29330/29412
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BQ20Z70EVM-001
ActiveTexas Instruments
MODULE EVAL BQ20Z70/29330/29412
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ20Z70EVM-001 | BQ20Z70 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Fault Protection | - | Over Temperature, Over/Under Voltage, Over Current, Short Circuit |
| Function | Battery Gauge | Battery Monitor, Battery Gauge |
| Interface | - | SMBus |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 4 |
| Number of Cells | - | 2 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 0.173 in |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 20-TSSOP |
| Supplied Contents | Board(s), Cable(s) | Board(s), Cable(s) |
| Supplier Device Package | - | 20-TSSOP |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ20Z70, BQ29330, BQ29410 | BQ20Z70, BQ29330, BQ29410 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 105.70 | |
BQ20Z70 Series
IC GAS GAUGE FOR BQ29330 20TSSOP
| Part | Supplier Device Package | Number of Cells [Max] [custom] | Number of Cells [Min] [custom] | Package / Case | Package / Case | Package / Case | Interface | Fault Protection | Battery Chemistry | Function | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Utilized IC / Part | Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ20Z70PW-V110G4 | 20-TSSOP | 4 | 2 | 0.173 in | 4.4 mm | 20-TSSOP | SMBus | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Lithium Ion/Polymer | Battery Monitor | Surface Mount | 85 °C | -40 °C | |||
Texas Instruments BQ20Z70PW-V150 | 20-TSSOP | 4 | 2 | 0.173 in | 4.4 mm | 20-TSSOP | SMBus | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Lithium Ion/Polymer | Battery Monitor | Surface Mount | 85 °C | -40 °C | |||
Texas Instruments BQ20Z70PWR-V150 | 20-TSSOP | 4 | 2 | 0.173 in | 4.4 mm | 20-TSSOP | SMBus | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Lithium Ion/Polymer | Battery Monitor | Surface Mount | 85 °C | -40 °C | |||
Texas Instruments BQ20Z70PW-V160 | 20-TSSOP | 4 | 2 | 0.173 in | 4.4 mm | 20-TSSOP | SMBus | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Lithium Ion/Polymer | Battery Monitor | Surface Mount | 85 °C | -40 °C | |||
Texas Instruments BQ20Z70PW-V110 | 20-TSSOP | 4 | 2 | 0.173 in | 4.4 mm | 20-TSSOP | SMBus | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Lithium Ion/Polymer | Battery Monitor | Surface Mount | 85 °C | -40 °C | |||
Texas Instruments BQ20Z70PWR-V110 | 20-TSSOP | 4 | 2 | 0.173 in | 4.4 mm | 20-TSSOP | SMBus | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Lithium Ion/Polymer | Battery Monitor | Surface Mount | 85 °C | -40 °C | |||
Texas Instruments BQ20Z70EVM-001 | Battery Gauge | BQ20Z70, BQ29330, BQ29410 | Power Management | Board(s), Cable(s) | ||||||||||||
Texas Instruments BQ20Z70PWR-V160 | 20-TSSOP | 4 | 2 | 0.173 in | 4.4 mm | 20-TSSOP | SMBus | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Lithium Ion/Polymer | Battery Monitor | Surface Mount | 85 °C | -40 °C | |||
Texas Instruments BQ20Z70PW | 20-TSSOP | 4 | 2 | 0.173 in | 4.4 mm | 20-TSSOP | SMBus | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | Lithium Ion/Polymer | Battery Monitor | Surface Mount | 85 °C | -40 °C |
Description
General part information
BQ20Z70 Series

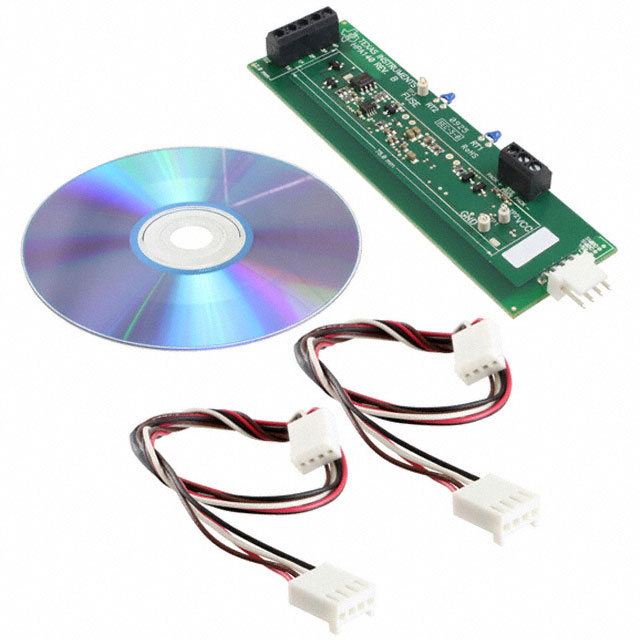

BQ20Z70/BQ29330/BQ29410 Battery Gauge Power Management Evaluation Board
