1408347-1

Active

TE Connectivity AMP Connectors

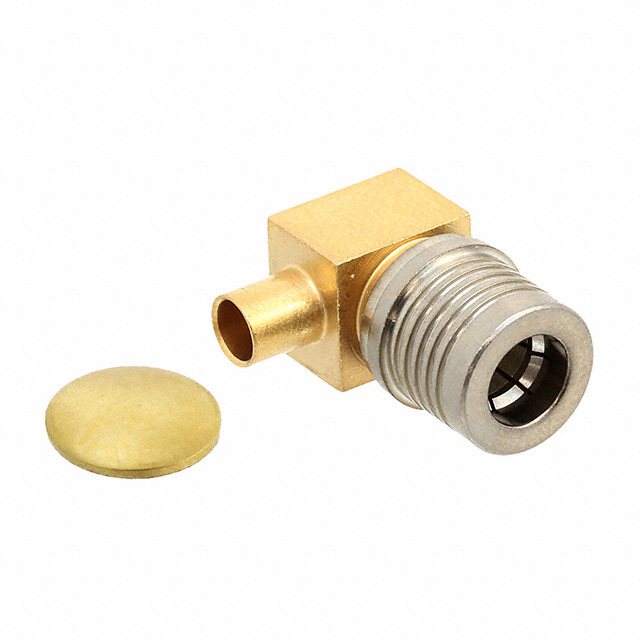

CONN QMA PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QMA PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1408347-1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 End Cap, 1 Connector
Insertion Loss	0.25 dB
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	335 V

CONN QMA PLUG R/A 50 OHM SOLDER

Part	Center Contact Material	Voltage Rating	Connector Type	Fastening Type	Mounting Type	Impedance	Shield Termination	Dielectric Material	Includes	Contact Termination	Housing Color	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Insertion Loss	Body Finish	Frequency - Max [Max]	Number of Ports
TE Connectivity AMP Connectors 1408347-1	Brass	335 V	Male Pin, Plug	Snap-On	Free Hanging (In-Line), Right Angle	50 Ohms	Solder	Polytetrafluoroethylene (PTFE)	1 Connector, 1 End Cap	Solder	Gold	Brass	-40 °C	80 C	Gold	0.25 dB	Gold	6000 MHz	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
