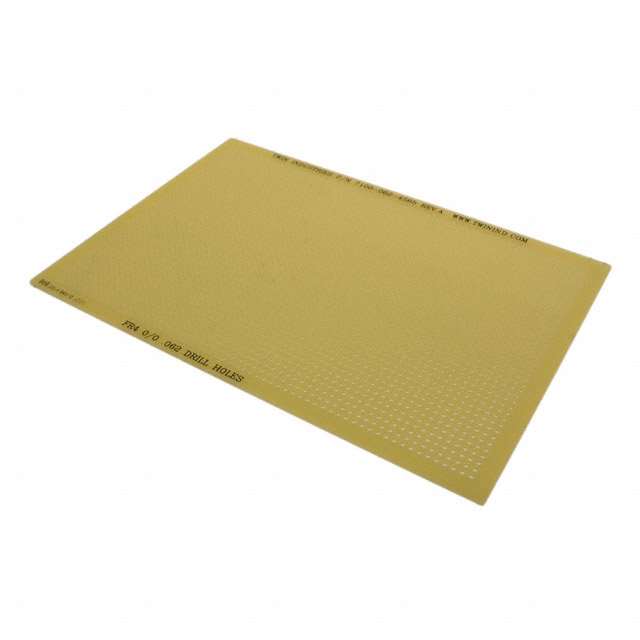

7100-062-4565

Active

TWIN INDUSTRIES

BREADBOARD PREPUNCHED INSULATING

Search across all available documentation for this part.

Active

TWIN INDUSTRIES

BREADBOARD PREPUNCHED INSULATING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	7100-062-4565	7100 Series

Board Thickness	0.062 in	0.062 in
Board Thickness	0.0625 in	0.0625 in
Board Thickness	1.57 mm	1.57 mm
Hole Diameter	0.0625 in	0.0625 in
Hole Diameter	1.57 mm	1.07 - 1.57 mm
Hole Diameter	0.062 in	0.042 - 0.062 " (inches)
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Proto Board Type	Breadboard, Prepunched Insulating	Breadboard, Prepunched Insulating
Size / Dimension [x]	165.1 mm	165.1 - 508 mm
Size / Dimension [x]	6.5 in	6.5 - 10 in
Size / Dimension [y]	4.5 in	4 - 10 "
Size / Dimension [y]	114.3 mm	101.6 - 254 mm

BREADBOARD PREPUNCHED INSULATING

Part	Pitch [x]	Pitch [x]	Size / Dimension [y]	Size / Dimension [x]	Proto Board Type	Hole Diameter	Hole Diameter	Board Thickness	Board Thickness	Board Thickness	Size / Dimension [y]	Size / Dimension [x]	Hole Diameter
TWIN INDUSTRIES 7100-1020	2.54 mm	0.1 in	254 mm	508 mm	Breadboard, Prepunched Insulating	0.042 " (inches)	1.07 mm	0.062 in	0.0625 in	1.57 mm
TWIN INDUSTRIES 7100-410	2.54 mm	0.1 in	101.6 mm	254 mm	Breadboard, Prepunched Insulating	0.042 " (inches)	1.07 mm	0.062 in	0.0625 in	1.57 mm	4 "	10 in
TWIN INDUSTRIES 7100-1010	2.54 mm	0.1 in	254 mm	254 mm	Breadboard, Prepunched Insulating	0.042 " (inches)	1.07 mm	0.062 in	0.0625 in	1.57 mm	10 in	10 in
TWIN INDUSTRIES 7100-4565	2.54 mm	0.1 in	114.3 mm	165.1 mm	Breadboard, Prepunched Insulating	0.042 " (inches)	1.07 mm	0.062 in	0.0625 in	1.57 mm	4.5 in	6.5 in
TWIN INDUSTRIES 7100-062-4565	2.54 mm	0.1 in	114.3 mm	165.1 mm	Breadboard, Prepunched Insulating	0.062 in	1.57 mm	0.062 in	0.0625 in	1.57 mm	4.5 in	6.5 in	0.0625 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Breadboard, Prepunched Insulating 0.100" (2.54mm)
