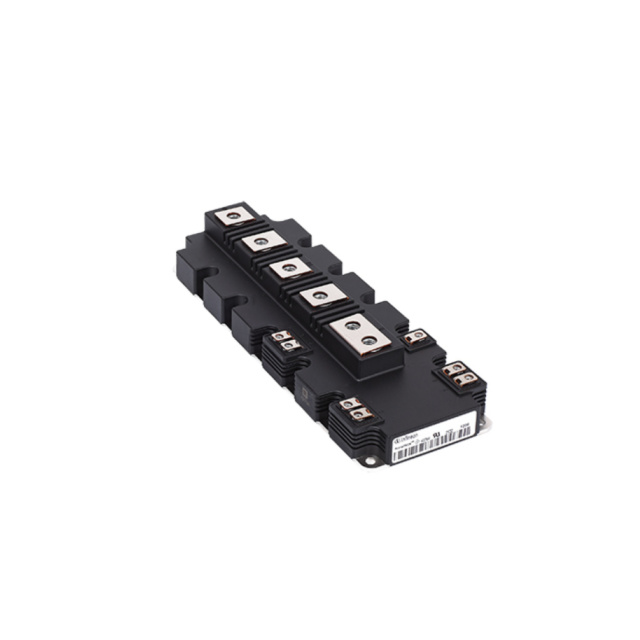

DF1000R17IE4DB2BOSA1

Active

Infineon Technologies

IGBT MODULE 1700V 6250W

Search across all available documentation for this part.

Active

Infineon Technologies

IGBT MODULE 1700V 6250W

Technical Specifications

Parameters and characteristics for this part

Specification	DF1000R17IE4DB2BOSA1

Configuration	Single
Current - Collector Cutoff (Max) [Max]	5 mA
Input	Standard
Input Capacitance (Cies) @ Vce	81 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Package / Case	Module
Power - Max [Max]	6250 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.45 V
Voltage - Collector Emitter Breakdown (Max)	1700 V

Part	Voltage - Collector Emitter Breakdown (Max)	Configuration	Mounting Type	IGBT Type	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Input Capacitance (Cies) @ Vce	Package / Case	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Vce(on) (Max) @ Vge, Ic	Input
Infineon Technologies DF1000R17IE4PBPSA1	1700 V	Single Chopper	Chassis Mount	Trench Field Stop	1 kA	AG-PRIME3-1	81 nF	Module	1000000 W	5 mA	150 °C	-40 °C	2.45 V	Standard
Infineon Technologies DF1000R17IE4DB2BOSA1	1700 V	Single	Chassis Mount			Module	81 nF	Module	6250 W	5 mA			2.45 V	Standard
Infineon Technologies DF1000R17IE4BOSA1	1700 V	Single	Chassis Mount			Module	81 nF	Module	6250 W	5 mA			2.45 V	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT Module Single 1700 V 6250 W Chassis Mount Module
