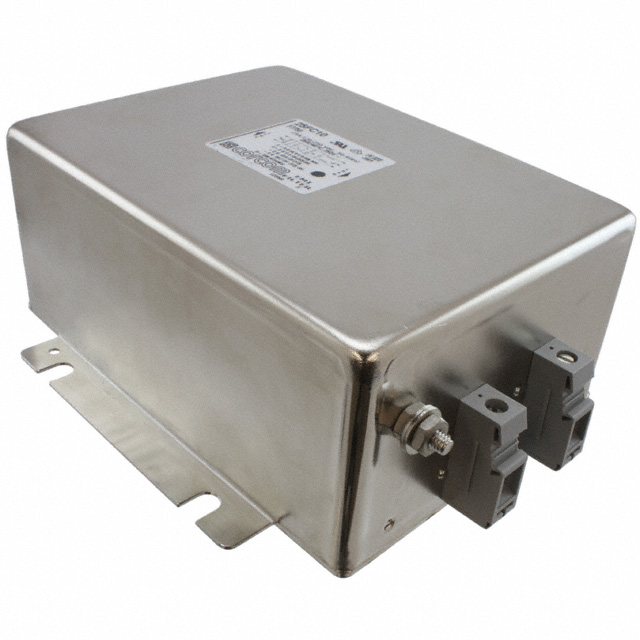

6609069-4

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 25A CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 25A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Specification	6609069-4

Applications	Power Drive Systems, Inverters
Configuration	Two Stage
Current	25 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Inductance	4.9 mH
Mounting Type	Chassis Mount
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Termination Style	Terminal Block
Voltage - Rated AC	250 V

Part	Current	Inductance	Voltage - Rated AC	Applications	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Operating [Max]	Frequency - Operating [Min]	Filter Type	Mounting Type	Termination Style
TE Connectivity Raychem Cable Protection 6609069-4	25 A	4.9 mH	250 V	Inverters Power Drive Systems	Two Stage	-10 °C	40 °C	60 Hz	50 Hz	Single Phase	Chassis Mount	Terminal Block
TE Connectivity Raychem Cable Protection 6609069-6	50 A		250 V	Inverters Power Drive Systems	Two Stage	-10 °C	40 °C	60 Hz	50 Hz	Single Phase	Chassis Mount	Terminal Block

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 A Single Phase Filter, Terminal Block Input, Terminal Block Output, 250 VAC, Corcom FC, Single Phase Filters
