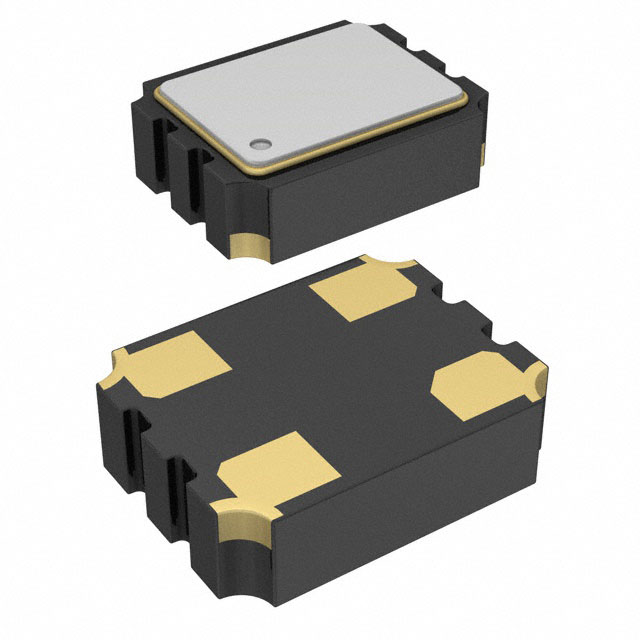

UX31F6201Z

Active

Diodes Inc

XTAL OSC XO 156.2500MHZ LVCMOS

Search across all available documentation for this part.

Active

Diodes Inc

XTAL OSC XO 156.2500MHZ LVCMOS

Technical Specifications

Parameters and characteristics for this part

Specification	UX31F6201Z

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	10 ÁA
Current - Supply (Max) [Max]	20 mA
Frequency	156.25 MHz
Frequency Stability	25 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	1.15 mm
Height - Seated (Max) [Max] [z]	0.045 in
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVCMOS
Package / Case	4-SMD, No Lead
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	2.5 mm
Size / Dimension [y]	0.098 in
Type	XO (Standard)
Voltage - Supply	3.3 V

Part	Function	Type	Output	Mounting Type	Frequency Stability	Voltage - Supply	Current - Supply (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Base Resonator	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Supply (Disable) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency
Diodes Inc UX31F6201Z	Enable/Disable	XO (Standard)	LVCMOS	Surface Mount	25 ppm	3.3 V	20 mA	3.2 mm	2.5 mm	0.126 in	0.098 in	Crystal	4-SMD No Lead	1.15 mm	0.045 in	10 ÁA	85 °C	-40 °C	156.25 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 11.54
	Digi-Reel®	1	$ 11.54
	Tape & Reel (TR)	3000	$ 7.40

General part information

156.25 MHz XO (Standard) LVCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
