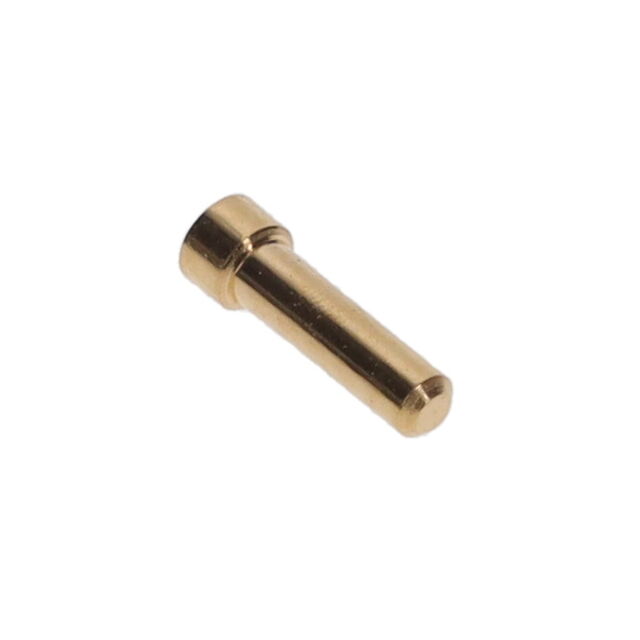

3016-0-15-15-21-14-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	3016-0-15-15-21-14-10-0

Accepts Pin Diameter [Max]	0.022 in
Accepts Pin Diameter [Max]	0.56 mm
Accepts Pin Diameter [Min]	0.38 mm
Accepts Pin Diameter [Min]	0.015 "
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.22 mm
Flange Diameter [diameter]	0.048 in
Length - Overall [x]	3.94 mm
Length - Overall [x]	0.155 "
Mounting Hole Diameter [diameter]	0.036 "
Mounting Hole Diameter [diameter]	0.91 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Socket Depth	0.138 "
Socket Depth	3.51 mm
Tail Type	No Tail
Termination	Solder

Part	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Tail Type	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 3016-0-15-80-21-14-10-0	0.79 mm	0.031 in	0.138 "	3.51 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	3.94 mm	0.155 "	10 Áin	0.25 Ám	Beryllium Copper	-55 °C	125 °C	Solder	0.036 "	0.91 mm	Gold	1.22 mm	0.048 in
Mill-Max Manufacturing Corp. 3016-0-15-15-21-14-10-0	0.79 mm	0.031 in	0.138 "	3.51 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	3.94 mm	0.155 "	10 Áin	0.25 Ám	Beryllium Copper	-55 °C	125 °C	Solder	0.036 "	0.91 mm	Gold	1.22 mm	0.048 in
Mill-Max Manufacturing Corp. 3016-0-15-01-21-14-10-0	0.79 mm	0.031 in	0.138 "	3.51 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	3.94 mm	0.155 "	10 Áin	0.25 Ám	Beryllium Copper	-55 °C	125 °C	Solder	0.036 "	0.91 mm	Gold	1.22 mm	0.048 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) No Tail Solder
