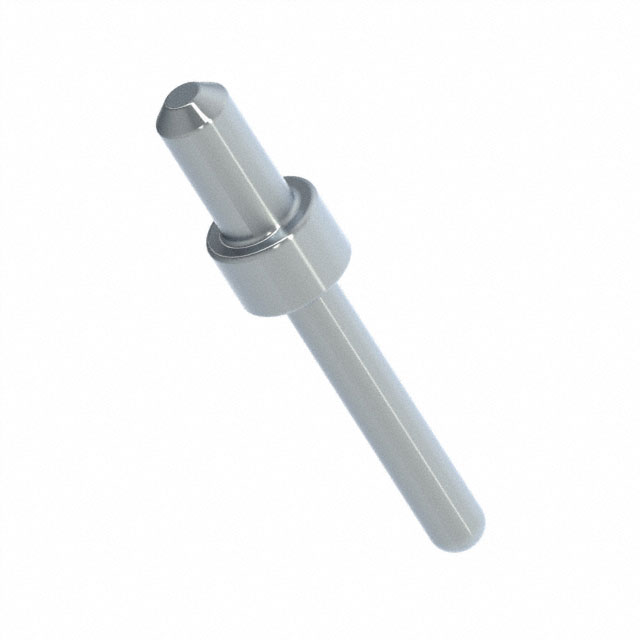

3137-1-00-80-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3137-1-00-80-00-00-08-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.062 in |
| Flange Diameter [diameter] | 1.57 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 2.08 mm |
| Length - Above Flange [x] | 0.082 in |
| Length - Below Flange [x] | 4.57 mm |
| Length - Below Flange [x] | 0.18 in |
| Length - Overall [x] | 7.67 mm |
| Length - Overall [x] | 0.302 in |
| Mounting Hole Diameter [diameter] | 1.09 mm |
| Mounting Hole Diameter [diameter] | 0.043 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Pin Size - Below Flange [diameter] | 0.03 in |
| Pin Size - Below Flange [diameter] | 0.76 mm |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.73 | |
| 10 | $ 0.62 | |||
| 100 | $ 0.56 | |||
| 1000 | $ 0.40 | |||
| 5000 | $ 0.35 | |||
| 10000 | $ 0.34 | |||
Description
General part information
3137-1 Series
PC Pin Terminal Connector Through Hole Tin 0.040" (1.02mm) Dia
