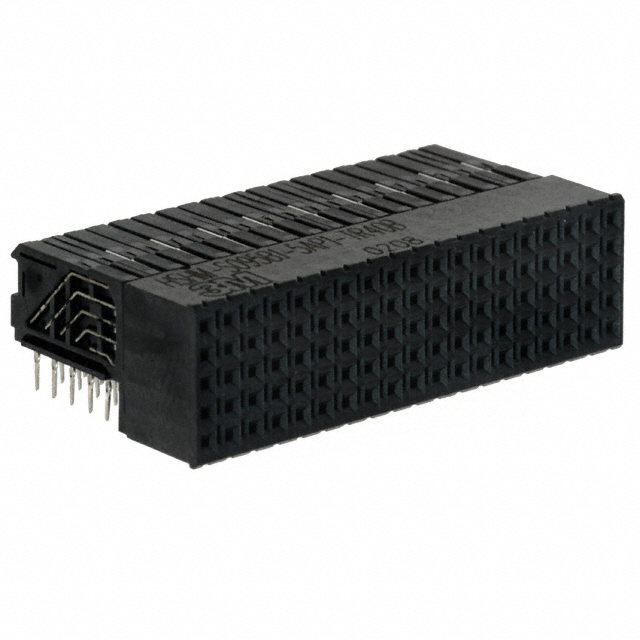

HSHM-S095B1-5AP1-TR40B

Active

CONN RECEPT 95POS 2MM PRESS-FIT

Search across all available documentation for this part.

Active

CONN RECEPT 95POS 2MM PRESS-FIT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

95 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle

Technical documentation and resources

Part	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Connector Type	Number of Positions Loaded	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Usage	Termination	Number of Positions	Pitch [x]	Pitch [x]	Connector Style
3M HSHM-S095B1-5AP1-TG30L	1 A	0.76 Ám	30 Áin	Gold	5	Receptacle, Female Sockets	All	Through Hole, Right Angle	-55 °C	125 °C	Backplane	Press-Fit	95	0.079 in	2 mm	B 19
3M HSHM-S095B1-5AP1-TR40B	1 A	1.27 µm	50 µin	Gold	5	Receptacle, Female Sockets	All	Through Hole, Right Angle	-55 °C	125 °C	Backplane	Press-Fit	95	0.079 in	2 mm	B 19
3M HSHM-S095B4-5AP1-TG30L	1 A	0.76 Ám	30 Áin	Gold	5	Receptacle, Female Sockets	All	Through Hole, Right Angle	-55 °C	125 °C	Backplane	Press-Fit	95	0.079 in	2 mm	B 19
