0464-0-15-01-10-02-04-0

Active

Mill-Max Manufacturing Corp.

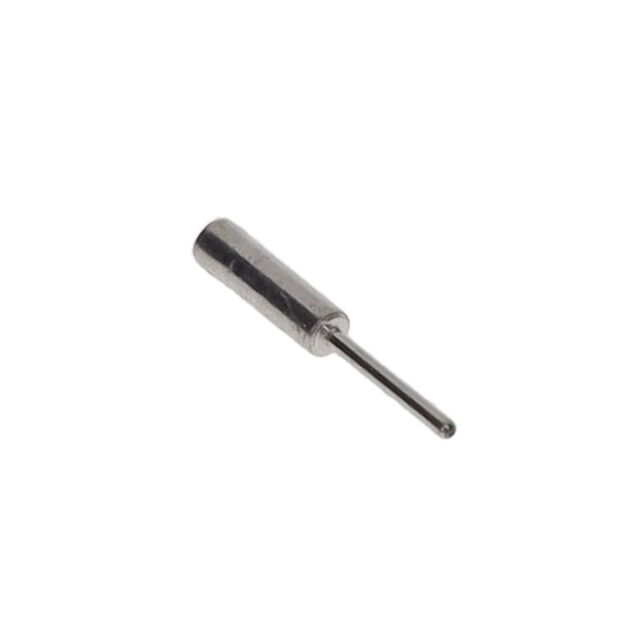

PIN REC .037DIA/.016 MOUNT HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPin Receptacles (metric)

0464-0-15-01-10-02-04-0

Active

Mill-Max Manufacturing Corp.

PIN REC .037DIA/.016 MOUNT HOLE

Deep-Dive with AI

DocumentsPin Receptacles (metric)

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0464-0-15-01-10-02-04-0

Accepts Pin Diameter [Max]	0.017 in
Accepts Pin Diameter [Max]	0.43 mm
Accepts Pin Diameter [Min]	0.3 mm
Accepts Pin Diameter [Min]	0.012 in
Contact Finish	Tin-Lead
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.037 "
Flange Diameter [diameter]	0.94 mm
Length - Overall [x]	6.35 mm
Length - Overall [x]	0.25 in
Mounting Hole Diameter [diameter]	0.016 in
Mounting Hole Diameter [diameter]	0.41 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.028 in
Pin Hole Diameter [diameter]	0.71 mm
Socket Depth	2.54 mm
Socket Depth	0.1 "
Tail Diameter [diameter]	0.014 in
Tail Diameter [diameter]	0.36 mm
Tail Type	Standard Tail
Termination	Solder

0464-0 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth	Contact Finish	Tail Diameter [diameter]	Tail Diameter [diameter]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 0464-0-15-80-10-27-04-0	-55 °C	125 °C	0.016 in	0.41 mm	6.35 mm	0.25 in	0.76 Ám	30 Áin	0.028 in	0.71 mm	Standard Tail	Beryllium Copper	0.017 in	0.3 mm	0.43 mm	0.012 in	2.54 mm	0.1 "	Gold	0.014 in	0.36 mm	Solder	0.037 "	0.94 mm
Mill-Max Manufacturing Corp. 0464-0-15-01-10-02-04-0	-55 °C	125 °C	0.016 in	0.41 mm	6.35 mm	0.25 in	2.54 µm	100 µin	0.028 in	0.71 mm	Standard Tail	Beryllium Copper	0.017 in	0.3 mm	0.43 mm	0.012 in	2.54 mm	0.1 "	Tin-Lead	0.014 in	0.36 mm	Solder	0.037 "	0.94 mm
Mill-Max Manufacturing Corp. 0464-0-15-80-10-14-04-0	-55 °C	125 °C	0.016 in	0.41 mm	6.35 mm	0.25 in	0.25 Ám	10 Áin	0.028 in	0.71 mm	Standard Tail	Beryllium Copper	0.017 in	0.3 mm	0.43 mm	0.012 in	2.54 mm	0.1 "	Gold	0.014 in	0.36 mm	Solder	0.037 "	0.94 mm
Mill-Max Manufacturing Corp. 0464-0-15-80-10-84-04-0	-55 °C	125 °C	0.016 in	0.41 mm	6.35 mm	0.25 in	2.54 µm	100 µin	0.028 in	0.71 mm	Standard Tail	Beryllium Copper	0.017 in	0.3 mm	0.43 mm	0.012 in	2.54 mm	0.1 "	Tin	0.014 in	0.36 mm	Solder	0.037 "	0.94 mm
Mill-Max Manufacturing Corp. 0464-0-15-15-10-14-04-0	-55 °C	125 °C	0.016 in	0.41 mm	6.35 mm	0.25 in	0.25 Ám	10 Áin	0.028 in	0.71 mm	Standard Tail	Beryllium Copper	0.017 in	0.3 mm	0.43 mm	0.012 in	2.54 mm	0.1 "	Gold	0.014 in	0.36 mm	Solder	0.037 "	0.94 mm
Mill-Max Manufacturing Corp. 0464-0-15-01-10-14-04-0	-55 °C	125 °C	0.016 in	0.41 mm	6.35 mm	0.25 in	0.25 Ám	10 Áin	0.028 in	0.71 mm	Standard Tail	Beryllium Copper	0.017 in	0.3 mm	0.43 mm	0.012 in	2.54 mm	0.1 "	Gold	0.014 in	0.36 mm	Solder	0.037 "	0.94 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.20
		10	$ 1.02
		25	$ 0.96
		50	$ 0.91
		100	$ 0.87
		250	$ 0.81
		500	$ 0.78
		1000	$ 0.74
		3000	$ 0.68

Description

General part information

0464-0 Series

Pin Receptacle Connector 0.012" ~ 0.017" (0.30mm ~ 0.43mm) Standard Tail Solder

Documents

Technical documentation and resources

Pin Receptacles (metric)

Datasheet
