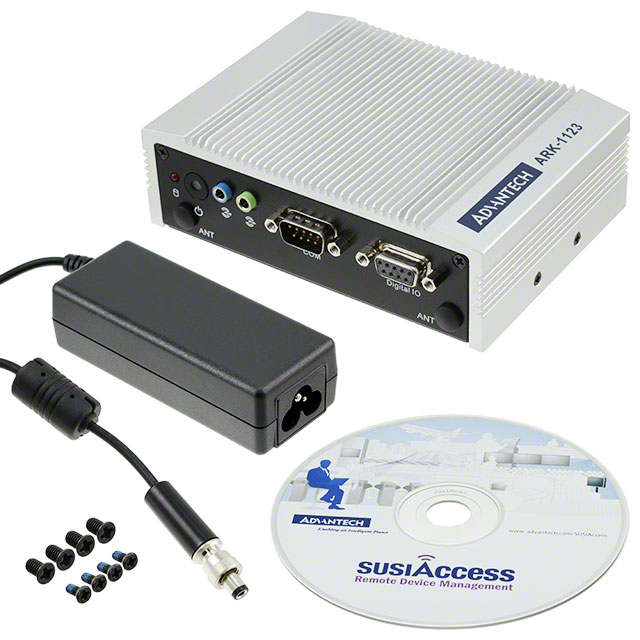

ARK-1123L-S3A1E
ObsoleteAdvantech Corp
SBC 1.33GHZ 2 CORE 8GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ARK-1123L-S3A1E
ObsoleteAdvantech Corp
SBC 1.33GHZ 2 CORE 8GB/0GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ARK-1123L-S3A1E |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | Intel Atom E3825 |
| Digital I/O Lines | 8 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | mPCIe |
| Number of Cores | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| RAM Capacity/Installed [custom] | 8 GB |
| RAM Capacity/Installed [custom] | 0 GB |
| RS-232 (422, 485) | 2 |
| Size / Dimension [x] | 133.85 mm |
| Size / Dimension [x] | 5.27 " |
| Size / Dimension [y] | 3.71 in |
| Size / Dimension [y] | 94.23 mm |
| Storage Interface | mSATA, SATA HDD |
| USB [custom] | USB 2.0 (1), USB 3.0 (1) |
| Video Outputs | VGA |
| Watchdog Timer | True |
ARK-1123 Series
| Part | RS-232 (422, 485) | RAM Capacity/Installed [custom] | RAM Capacity/Installed [custom] | USB [custom] | Watchdog Timer | Ethernet | Operating Temperature [Max] | Operating Temperature [Min] | Number of Cores | Core Processor | Cooling Type | Storage Interface | Digital I/O Lines | Video Outputs | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Expansion Site/Bus | Speed | USB | Power (Watts) | Form Factor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Advantech Corp | 2 | 8 GB | 0 GB | USB 2.0 (1) USB 3.0 (1) | 10 Mbps 100 Mbps 1000 Mbps | 70 °C | -30 ░C | 2 | Intel Atom E3825 | Heat Sink | mSATA SATA HDD | 8 | VGA | 133.85 mm | 5.27 " | 3.71 in | 94.23 mm | mPCIe | |||||
Advantech Corp | 2 | 8 GB | 0 GB | USB 2.0 (1) USB 3.0 (1) | 10 Mbps 100 Mbps 1000 Mbps | 70 °C | -30 ░C | 2 | Intel Atom E3825 | mSATA SATA HDD | VGA | 133.85 mm | 5.27 " | 3.71 in | 94.23 mm | mPCIe | |||||||
Advantech Corp | 1 | 8 GB | 0 GB | 10 Mbps 100 Mbps 1000 Mbps | 60 °C | -20 C | 4 | Intel Celeron J1900 | Heat Sink | mSATA SATA HDD | HDMI | 133.85 mm | 5.27 " | 3.71 in | 94.23 mm | mPCIe | 2 GHz | USB 2.0 (2) USB 3.0 (1) | 14.04 W | ||||
Advantech Corp | 2 | 8 GB | 0 GB | 10 Mbps 100 Mbps 1000 Mbps | 70 °C | -30 ░C | 2 | Intel Atom E3825 | mSATA SATA HDD | VGA | 133.6 mm | 5.26 " | 1.69 in | 42.92 mm | mPCIe | USB 2.0 (2) USB 3.0 (1) | 8.16 W | 2.5 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ARK-1123 Series
Single Board Computer 1.33GHz 2 Core 8GB/0GB RAM Intel Atom E3825
