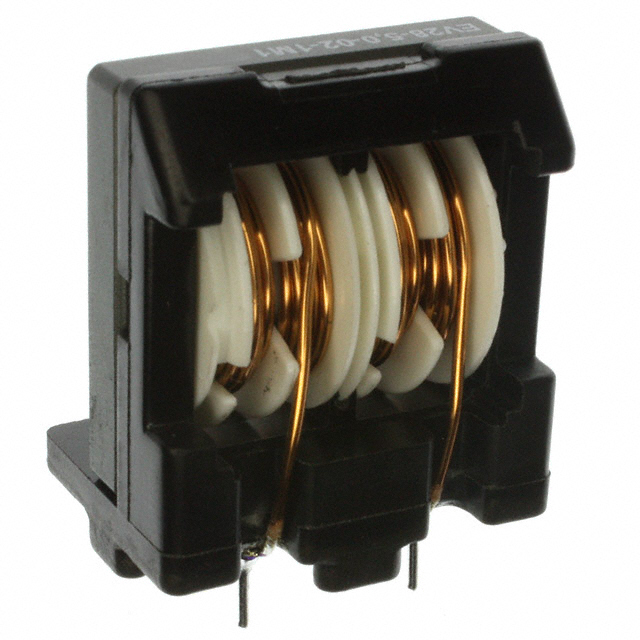

EV28-5.0-02-1M1

Active

Schaffner EMC Inc.

CMC 1.1MH 5A 2LN TH

Search across all available documentation for this part.

Active

Schaffner EMC Inc.

CMC 1.1MH 5A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	EV28-5.0-02-1M1

Current Rating (Max) [Max]	5 A
DC Resistance (DCR) (Max)	27 mOhm
Filter Type	Power Line
Height (Max) [Max]	35.7 mm
Height (Max) [Max]	1.406 in
Inductance @ Frequency	1.1 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	4 Lead
Package / Case	Vertical
Size / Dimension [x]	29.2 mm
Size / Dimension [x]	1.15 "
Size / Dimension [y]	0.827 in
Size / Dimension [y]	21 mm
Voltage Rating - AC	250 V

CMC 1.1MH 5A 2LN TH

Part	Inductance @ Frequency	DC Resistance (DCR) (Max)	Filter Type	Height (Max) [Max]	Height (Max) [Max]	Number of Lines	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [custom]	Package / Case	Package / Case	Current Rating (Max) [Max]	Mounting Type	Voltage Rating - AC
Schaffner EMC Inc. EV28-5.0-02-1M1	1.1 mH	27 mOhm	Power Line	35.7 mm	1.406 in	2	0.827 in	21 mm	29.2 mm	1.15 "	-25 °C, 100 °C	4 Lead	Vertical	5 A	Through Hole	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.1 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 5A DCR 27mOhm (Typ)
