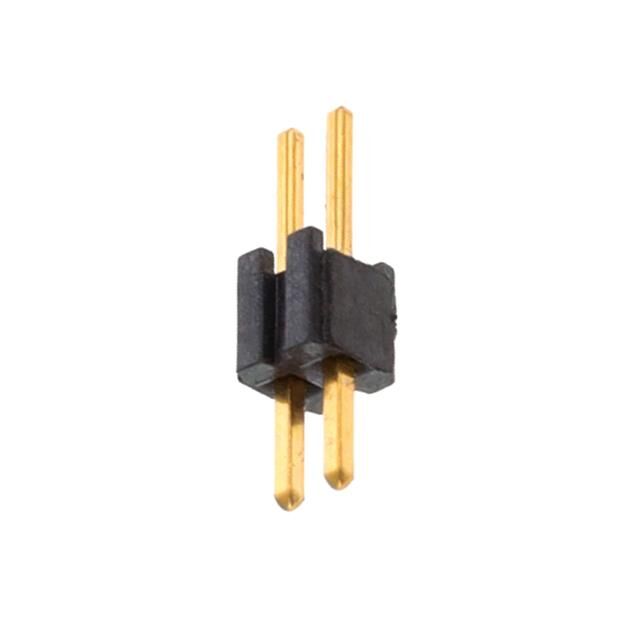

HTMS-102-02-G-S - HTMS-102-02-G-S

HTMS-102-02-G-S

Active
Samtec Inc.

CONN HEADER VERT 2POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHTMS DatasheetThrough-hole Micro Header, 0.050" x 0.100" Pitch+1
HTMS-102-02-G-S - HTMS-102-02-G-S

HTMS-102-02-G-S

Active
Samtec Inc.

CONN HEADER VERT 2POS 1.27MM

Deep-Dive with AI

DocumentsHTMS DatasheetThrough-hole Micro Header, 0.050" x 0.100" Pitch+1

Technical Specifications

Parameters and characteristics for this part

SpecificationHTMS-102-02-G-S
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact Finish Thickness - Post3 µin
Contact Finish Thickness - Post0.076 µm
Contact Length - Mating0.1 in
Contact Length - Mating2.54 mm
Contact Length - Post [x]0.12 in
Contact Length - Post [x]3.05 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)5 A
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height0.1 in
Insulation Height2.54 mm
Insulation MaterialLiquid Crystal Polymer (LCP)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions2
Number of Positions LoadedAll
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.05 in
Pitch - Mating1.27 mm
ShroudingUnshrouded
TerminationSolder

HTMS-104 Series

Headers & Wire Housings Through-hole Micro Header, 0.050" x 0.100" Pitch

...
PartContact ShapeNumber of PositionsContact Length - MatingContact Length - MatingInsulation HeightInsulation HeightTerminationNumber of RowsPitch - MatingPitch - MatingContact Finish - PostShroudingContact Finish Thickness - MatingContact Finish Thickness - MatingInsulation MaterialMaterial Flammability RatingContact Finish - MatingMounting TypeCurrent Rating (Amps)Insulation ColorRow Spacing - Mating [x]Row Spacing - Mating [x]Contact MaterialFastening TypeNumber of Positions LoadedOperating Temperature [Min]Operating Temperature [Max]Connector TypeContact TypeContact Length - Post [x]Contact Length - Post [x]Contact Finish Thickness - PostContact Finish Thickness - PostOverall Contact LengthOverall Contact LengthContact Length - Mating [x]Overall Contact LengthContact Length - Mating
Samtec Inc.
HTMS-107-52-S-D-SM
Square
14
5.21 mm
0.205 in
0.1 in
2.54 mm
Solder
2
0.05 in
1.27 mm
Tin
Unshrouded
30 Áin
0.76 Ám
Liquid Crystal Polymer (LCP)
UL94 V-0
Gold
Surface Mount
5 A
Black
2.54 mm
0.1 in
Phosphor Bronze
Push-Pull
All
-55 °C
125 °C
Header
Male Pin
Samtec Inc.
HTMS-110-53-S-D-SM
Square
20
7.24 mm
0.285 in
0.1 in
2.54 mm
Solder
2
0.05 in
1.27 mm
Tin
Unshrouded
30 Áin
0.76 Ám
Liquid Crystal Polymer (LCP)
UL94 V-0
Gold
Surface Mount
5 A
Black
2.54 mm
0.1 in
Phosphor Bronze
Push-Pull
All
-55 °C
125 °C
Header
Male Pin
Samtec Inc.
HTMS-102-02-G-S
Square
2
2.54 mm
0.1 in
0.1 in
2.54 mm
Solder
1
0.05 in
1.27 mm
Gold
Unshrouded
10 çin
0.25 çm
Liquid Crystal Polymer (LCP)
UL94 V-0
Gold
Through Hole
5 A
Black
Phosphor Bronze
Push-Pull
All
-55 °C
125 °C
Header
Male Pin
0.12 in
3.05 mm
3 µin
0.076 µm
Samtec Inc.
HTMS-110-01-G-D-006
Samtec Inc.
HTMS-104-59-L-S
Square
4
13.59 mm
0.535 in
0.1 in
2.54 mm
Solder
1
0.05 in
1.27 mm
Tin
Unshrouded
10 çin
0.25 çm
Liquid Crystal Polymer (LCP)
UL94 V-0
Gold
Through Hole
5 A
Black
Phosphor Bronze
Push-Pull
All
-55 °C
125 °C
Header
Male Pin
0.12 in
3.05 mm
19.18 mm
0.755 in
Samtec Inc.
HTMS-104-02-S-S-SM
Samtec Inc.
HTMS-108-01-S-S-RA
Square
8
5.84 mm
0.096 "
2.44 mm
Solder
1
0.05 in
1.27 mm
Tin
Unshrouded
30 Áin
0.76 Ám
Liquid Crystal Polymer (LCP)
UL94 V-0
Gold
Through Hole
Right Angle
5 A
Black
Phosphor Bronze
Push-Pull
All
-55 °C
125 °C
Header
Male Pin
0.14 in
3.56 mm
0.23 in
Samtec Inc.
HTMS-117-01-G-D-RA
Square
34
5.84 mm
Solder
2
0.05 in
1.27 mm
Gold
Unshrouded
10 çin
0.25 çm
Liquid Crystal Polymer (LCP)
UL94 V-0
Gold
Through Hole
Right Angle
5 A
Black
2.54 mm
0.1 in
Phosphor Bronze
Push-Pull
All
-55 °C
125 °C
Header
Male Pin
0.14 in
3.56 mm
3 µin
0.076 µm
0.23 in
Samtec Inc.
HTMS-108-57-L-S
Square
8
0.43 in
0.1 in
2.54 mm
Solder
1
0.05 in
1.27 mm
Tin
Unshrouded
10 çin
0.25 çm
Liquid Crystal Polymer (LCP)
UL94 V-0
Gold
Through Hole
5 A
Black
Phosphor Bronze
Push-Pull
All
-55 °C
125 °C
Header
Male Pin
0.12 in
3.05 mm
0.65 in
16.51 mm
10.92 mm
Samtec Inc.
HTMS-104-02-T-S
Square
4
2.54 mm
0.1 in
0.1 in
2.54 mm
Solder
1
0.05 in
1.27 mm
Tin
Unshrouded
Liquid Crystal Polymer (LCP)
UL94 V-0
Through Hole
5 A
Black
Phosphor Bronze
Push-Pull
All
-55 °C
105 ░C
Header
Male Pin
0.12 in
3.05 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.39
10$ 0.33
100$ 0.28
500$ 0.25
1000$ 0.24
5000$ 0.21
10000$ 0.20

Description

General part information

HTMS-104 Series

Headers & Wire Housings Through-hole Micro Header, 0.050" x 0.100" Pitch
